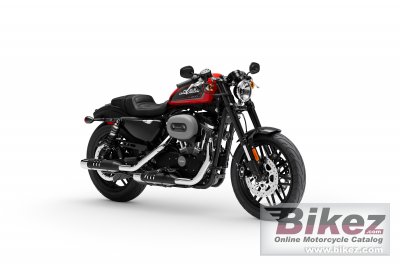

These are the known mechanical and performance specifications for your 2020 Harley-Davidson Roadster.
Basic Specs
Year2020
MakeHarley-Davidson
ModelHarley-Davidson Roadster
TypeNaked bike
CostUS$ 11499. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement1202.0 ccm (73.35 cubic inches)
TypeEvolution® engine
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustShorty-dual exhaust with chrome tapered mufflers with laser cut black heat shields
LubricationDry sump
CoolingAir
Drivetrain
Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
Driveline57/38 ratio
Performance
Horespower67.0 HP (48.9 kW) @ 6000 RPM
Torque103.1 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 3750 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption5.20 litres/100 km (19.2 km/l or 45.23 mpg)
Fuel Capacity12.50 litres (3.30 US gallons)
Emissions120.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake28.9 deg
Trail140 mm (5.5 inches)
Front SuspensionInverted fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2184 mm (86.0 inches)
Total Width
Ground Clearance150 mm (5.9 inches)
Wheelbase1505 mm (59.3 inches)
Dry Weight250.0 kg (551.2 pounds)
Wet Weight259.0 kg (571.0 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-R19
Rear Tire/Tyre150/70-R18
Front BrakesSingle disc. Dual-piston. Optional ABS.
Front Brake Diameter
Rear BrakesSingle disc. Dual-piston. Optional ABS.
Rear Brake Diameter
WheelsBlack Offset, Split 5-Spoke Cast Aluminum
