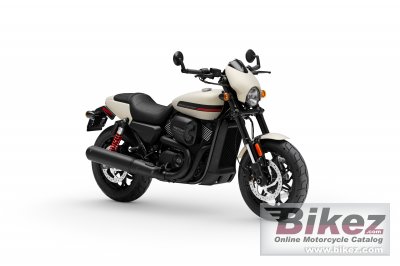

2020 Harley-Davidson Street Rod Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Harley-Davidson Street Rod.

Basic Specs

Harley-Davidson Street Rod
Year2020
MakeHarley-Davidson
ModelHarley-Davidson Street Rod
CostUS$ 8699. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement749.0 ccm (45.70 cubic inches)
TypeRevolution X engine
DetailsV2, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke85.0 x 66.0 mm (3.3 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. Mikuni Twin Port Fuel Injection, 42 mm bore
Ignition
ExhaustBlack two- into-one
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineGear 36/68 ratio primary drive

Performance

Horespower70.0 HP (51.1 kW) @ 9000 RPM
Torque65.0 Nm (6.6 kgf-m or 47.9 ft.lbs) @ 4000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption4.36 litres/100 km (22.9 km/l or 53.95 mpg)
Fuel Capacity13.25 litres (3.50 US gallons)
Emissions101.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake29.7 deg
Trail99 mm (3.9 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height765 mm (30.1 inches) If adjustable, lowest setting.
Alt. Seat Height732 mm (28.8 inches) If adjustable, highest setting.
Total Height
Total Length2130 mm (83.9 inches)
Total Width
Ground Clearance205 mm (8.1 inches)
Wheelbase1510 mm (59.4 inches)
Dry Weight229.0 kg (504.9 pounds)
Wet Weight238.0 kg (524.7 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-R17
Rear Tire/Tyre160/60-R17
Front BrakesSingle disc. 2-piston floated, optional ABS
Front Brake Diameter
Rear BrakesSingle disc. 2-piston floated, optional ABS
Rear Brake Diameter
WheelsBlack, 7-Split Open Spoke Cast Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson Street Rod. This Custom / cruiser model is powered by a Revolution X engine V2, four-stroke engine with 749.0 ccm (45.70 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection. Mikuni Twin Port Fuel Injection, 42 mm bore allowing this machine to produce its 70.0 HP (51.1 kW) @ 9000 RPM horsepower and 65.0 Nm (6.6 kgf-m or 47.9 ft.lbs) @ 4000 RPM torque. According to our records engine heat of the Harley-Davidson Street Rod is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-R17 and the rear is 160/60-R17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 2-piston floated, optional ABS front brakes and Single disc. 2-piston floated, optional ABS rear brakes. The Harley-Davidson Street Rod was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
