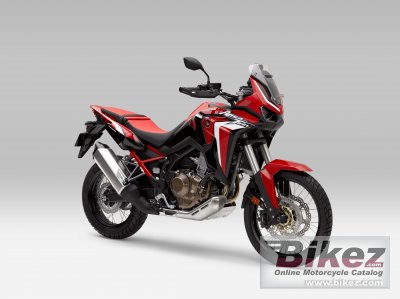

2020 Honda Africa Twin Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Honda Africa Twin.

Basic Specs

Honda Africa Twin
Year2020
MakeHonda
ModelHonda Africa Twin
CostUS$ 14399. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement1084.0 ccm (66.15 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.1:1
Bore/Stroke92.0 x 81.5 mm (3.6 x 3.2 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI electronic fuel injection (throttle by wire)
IgnitionFull transistorized ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, multi-plate with coil springs, aluminum cam assist and slipper clutch
Driveline#525 Chain; 16T/42T

Performance

Horespower101.0 HP (73.7 kW) @ 7500 RPM
Torque104.4 Nm (10.6 kgf-m or 77.0 ft.lbs) @ 6000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.93 litres (5.00 US gallons)
Emissions

Chassis

Frame TypeSteel semi-double cradle type with high-tensile strength steel rear sub-frame
Rake
Trail
Front SuspensionInverted telescopic fork
Front Travel231 mm (9.1 inches)
Rear SuspensionPro-Link® system w/ single shock
Rear Travel221 mm (8.7 inches)
Seat
Seat Height851 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height871 mm (34.3 inches) If adjustable, highest setting.
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1575 mm (62.0 inches)
Dry Weight
Wet Weight227.3 kg (501.0 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre150/70-R18
Front BrakesDouble disc. Switchable ABS. 4-piston calipers and sintered metal pads
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Switchable ABS. 2-piston caliper and sintered metal pads.
Rear Brake Diameter256 mm (10.1 inches)
WheelsWire spoked

Comments

It appears you're interested in specifications for the Honda Africa Twin. This Enduro / offroad model is powered by a Twin, four-stroke engine with 1084.0 ccm (66.15 cubic inches) of actual displacement before 10.1:1 compression. Fueling is metered via Injection. PGM-FI electronic fuel injection (throttle by wire) allowing this machine to produce its 101.0 HP (73.7 kW) @ 7500 RPM horsepower and 104.4 Nm (10.6 kgf-m or 77.0 ft.lbs) @ 6000 RPM torque. According to our records engine heat of the Honda Africa Twin is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 150/70-R18 . The entire package is supported by the frame, Steel semi-double cradle type with high-tensile strength steel rear sub-frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Switchable ABS. 4-piston calipers and sintered metal pads front brakes and Single disc. Switchable ABS. 2-piston caliper and sintered metal pads. rear brakes. The Honda Africa Twin was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Small windscreen. Model Id: CRF1000L.
