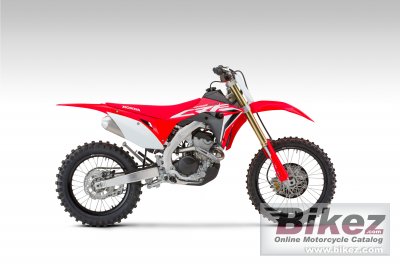

2020 Honda CRF250RX Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Honda CRF250RX.

Basic Specs

Honda CRF250RX
Year2020
MakeHonda
ModelHonda CRF250RX
CostUS$ 8299. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement249.0 ccm (15.19 cubic inches)
Type33mm intake valve, titanium; 26mm exhaust, titanium
DetailsSingle cylinder, four-stroke
Max RPM
Compression13.9:1
Bore/Stroke79.0 x 50.9 mm (3.1 x 2.0 inches)
Valves/Cylinder4
FuelingInjection. Dual-Timing Programmed Fuel Injection (PGM-FI), 46mm throttle body
IgnitionFull transistor
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final Drive
ClutchMulti plate wet
Driveline#520 Chain; 13T/48T

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.52 litres (2.25 US gallons)
Emissions

Chassis

Frame TypeAluminium twin tube
Rake27.2 deg
Trail114 mm (4.5 inches)
Front Suspension49mm fully adjustable leading-axle inverted telescopic Showa SPG coil-spring fork.
Front Travel305 mm (12.0 inches)
Rear SuspensionPro-Link system; fully adjustable Showa single shock
Rear Travel315 mm (12.4 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1262 mm (49.7 inches)
Total Length2184 mm (86.0 inches)
Total Width828 mm (32.6 inches)
Ground Clearance328 mm (12.9 inches)
Wheelbase1486 mm (58.5 inches)
Dry Weight
Wet Weight110.7 kg (244.0 pounds)

Wheels & Brakes

Front Tire/Tyre80/100-21
Rear Tire/Tyre110/100-18
Front BrakesSingle disc. Hydraulic
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Hydraulic
Rear Brake Diameter240 mm (9.4 inches)
WheelsDunlop Geomax AT81

Comments

It appears you're interested in specifications for the Honda CRF250RX. This Enduro / offroad model is powered by a 33mm intake valve, titanium; 26mm exhaust, titanium Single cylinder, four-stroke engine with 249.0 ccm (15.19 cubic inches) of actual displacement before 13.9:1 compression. Fueling is metered via Injection. Dual-Timing Programmed Fuel Injection (PGM-FI), 46mm throttle body allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CRF250RX is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 80/100-21 and the rear is 110/100-18 . The entire package is supported by the frame, Aluminium twin tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic front brakes and Single disc. Hydraulic rear brakes. The Honda CRF250RX was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CRF250RX
