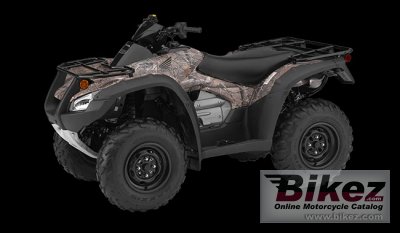

These are the known mechanical and performance specifications for your 2020 Honda FourTrax Rincon.
Basic Specs
Year2020
MakeHonda
ModelHonda FourTrax Rincon
TypeATV
CostUS$ 9399. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement675.0 ccm (41.19 cubic inches)
TypeLongitudinally mounted engine.
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke102.0 x 82.6 mm (4.0 x 3.3 inches)
Valves/Cylinder
FuelingInjection. Electronic fuel injection (PGM-FI), 40mm throttle bodies
IgnitionFull-transistorized type with electronic advance
Exhaust
LubricationSemi-dry sump
CoolingLiquid
Drivetrain
Gearbox3-speed
Final Drive
Clutch
DrivelineDirect front and rear driveshafts with TraxLok® and torque-sensitive front differential
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity16.65 litres (4.40 US gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent double-wishbone
Front Travel175 mm (6.9 inches)
Rear SuspensionIndependent double-wishbone
Rear Travel203 mm (8.0 inches)
Seat
Seat Height876 mm (34.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1207 mm (47.5 inches)
Total Length2113 mm (83.2 inches)
Total Width1189 mm (46.8 inches)
Ground Clearance234 mm (9.2 inches)
Wheelbase1290 mm (50.8 inches)
Dry Weight298.0 kg (657.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesDouble disc. Hydraulic.
Front Brake Diameter180 mm (7.1 inches)
Rear BrakesSingle disc. Hydraulic.
Rear Brake Diameter
Wheels
Comments
Model ID: TRX680FA.
