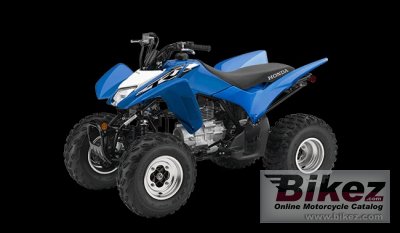

2020 Honda TRX250X Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Honda TRX250X.

Basic Specs

Honda TRX250X
Year2020
MakeHonda
ModelHonda TRX250X
TypeATV
CostUS$ 4949. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement229.0 ccm (13.97 cubic inches)
TypeLongitudinally mounted engine.
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke68.5 x 62.2 mm (2.7 x 2.4 inches)
Valves/Cylinder
FuelingCarburettor. 20mm piston-valve
IgnitionCD with electronic advance
Exhaust
LubricationDry sump
CoolingAir

Drivetrain

Gearbox5-speed
Final Drive
ClutchHonda SportClutch™
DrivelineDirect rear drive shaft. With reverse.

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.46 litres (2.50 US gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionIndependent double-wishbone
Front Travel150 mm (5.9 inches)
Rear SuspensionSwingarm with single shock
Rear Travel145 mm (5.7 inches)
SeatDual seat
Seat Height798 mm (31.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1082 mm (42.6 inches)
Total Length1740 mm (68.5 inches)
Total Width1062 mm (41.8 inches)
Ground Clearance145 mm (5.7 inches)
Wheelbase1125 mm (44.3 inches)
Dry Weight
Wet Weight174.2 kg (384.0 pounds)

Wheels & Brakes

Front Tire/Tyre22/7-10
Rear Tire/Tyre22/10-9
Front BrakesDouble disc. Hydraulic.
Front Brake Diameter174 mm (6.9 inches)
Rear BrakesExpanding brake (drum brake). Sealed mechanical drum
Rear Brake Diameter229 mm (9.0 inches)
WheelsBlack

Comments

It appears you're interested in specifications for the Honda TRX250X. This ATV model is powered by a Longitudinally mounted engine. Single cylinder, four-stroke engine with 229.0 ccm (13.97 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Carburettor. 20mm piston-valve allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda TRX250X is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 22/7-10 and the rear is 22/10-9 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Hydraulic. front brakes and Expanding brake (drum brake). Sealed mechanical drum rear brakes. The Honda TRX250X was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: TRX250X
