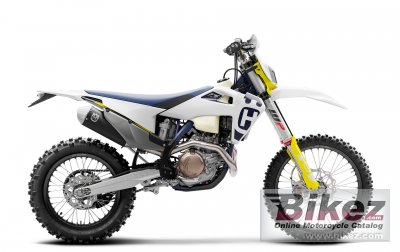

These are the known mechanical and performance specifications for your 2020 Husqvarna FE 501.
Basic Specs


Year2020
MakeHusqvarna
ModelHusqvarna FE 501
TypeEnduro / offroad
CostUS$ 11099. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement510.9 ccm (31.18 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.2:1
Bore/Stroke95.0 x 72.0 mm (3.7 x 2.8 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionKeihin EMS
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchWet, DDS multi-disc clutch, Magura hydraulics
DrivelineX-ring 5/8 x 1/4 in chain
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity8.20 litres (2.17 US gallons)
Emissions
Chassis
Frame TypeCentral double-cradle-type 25CrMo4 steel
Rake26.5 deg
Trail
Front SuspensionWP-USD Xplor 48 with preload adjuster
Front Travel
Rear SuspensionWP shock absorber with linkage
Rear Travel
Seat
Seat Height950 mm (37.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance360 mm (14.2 inches)
Wheelbase1482 mm (58.3 inches)
Dry Weight108.4 kg (239.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre140/80-18
Front BrakesSingle disc. Magura twin-piston floating calliper
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Magura single-piston floating calliper
Rear Brake Diameter200 mm (7.9 inches)
Wheels
Comments
