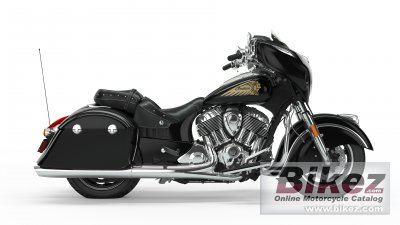

2020 Indian Chieftain Classic Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Indian Chieftain Classic.

Basic Specs

Indian Chieftain Classic
Year2020
MakeIndian
ModelIndian Chieftain Classic
Cost

Engine

Displacement1811.0 ccm (110.51 cubic inches)
TypeThunder Stroke® 111
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke101.0 x 113.0 mm (4.0 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Closed Loop Sequential Port Fuel Injection
Ignition
ExhaustSplit dual exhaust with cross-over
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final Drive
Clutch
Driveline

Performance

Horespower
Torque161.6 Nm (16.5 kgf-m or 119.2 ft.lbs) @ 3000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.80 litres (5.50 US gallons)
Emissions

Chassis

Frame TypeCast aluminium
Rake25.0 deg
Trail150 mm (5.9 inches)
Front SuspensionTelescopic forks with air adjustment
Front Travel119 mm (4.7 inches)
Rear SuspensionSingle shock
Rear Travel114 mm (4.5 inches)
SeatDual leather seat
Seat Height660 mm (26.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1390 mm (54.7 inches)
Total Length2571 mm (101.2 inches)
Total Width1000 mm (39.4 inches)
Ground Clearance142 mm (5.6 inches)
Wheelbase1668 mm (65.7 inches)
Dry Weight375.0 kg (826.7 pounds)
Wet Weight390.0 kg (859.8 pounds)

Wheels & Brakes

Front Tire/Tyre130/90-B16
Rear Tire/Tyre180/60-R16
Front BrakesDouble disc. ABS. Floating discs. 4 piston caliper.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. ABS. Floating disc. 2-piston caliper.
Rear Brake Diameter300 mm (11.8 inches)
WheelsCast aluminium wheels

Comments

It appears you're interested in specifications for the Indian Chieftain Classic. This Custom / cruiser model is powered by a Thunder Stroke® 111 V2, four-stroke engine with 1811.0 ccm (110.51 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Injection. Closed Loop Sequential Port Fuel Injection allowing this machine to produce its horsepower and 161.6 Nm (16.5 kgf-m or 119.2 ft.lbs) @ 3000 RPM torque. According to our records engine heat of the Indian Chieftain Classic is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 130/90-B16 and the rear is 180/60-R16 . The entire package is supported by the frame, Cast aluminium. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating discs. 4 piston caliper. front brakes and Single disc. ABS. Floating disc. 2-piston caliper. rear brakes. The Indian Chieftain Classic was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
