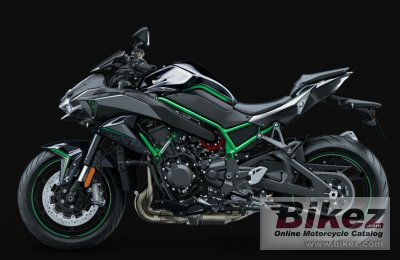

2020 Kawasaki Ninja Z H2 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Kawasaki Ninja Z H2.

Basic Specs

Kawasaki Ninja Z H2
Year2020
MakeKawasaki
ModelKawasaki Ninja Z H2
TypeSport
Cost

Engine

Displacement998.0 ccm (60.90 cubic inches)
TypeLiquid-cooled, 4-stroke In-Line Four with Supercharger
DetailsIn-line four, four-stroke
Max RPM
Compression11.2:1
Bore/Stroke76.0 x 55.0 mm (3.0 x 2.2 inches)
Valves/Cylinder4
FuelingInjection
IgnitionDigital
Exhaust
LubricationForced lubrication, wet sump with oil cooler
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet multi-disc, manual
DrivelineSealed chain

Performance

Horespower197.1 HP (143.9 kW) @ 11000 RPM
Torque137.0 Nm (14.0 kgf-m or 101.1 ft.lbs) @ 8500 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.00 litres (5.02 US gallons)
Emissions

Chassis

Frame TypeTrellis, high-tensile steel with Swingarm Mounting Plate
Rake25.5 deg
Trail103 mm (4.1 inches)
Front Suspension43 mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs
Front Travel119 mm (4.7 inches)
Rear SuspensionUni-Trak, Öhlins TTX36 gas-charged shock with piggyback reservoir, compression damping, rebound damping, preload adjustability and top-out spring
Rear Travel135 mm (5.3 inches)
Seat
Seat Height825 mm (32.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1130 mm (44.5 inches)
Total Length2085 mm (82.1 inches)
Total Width810 mm (31.9 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1455 mm (57.3 inches)
Dry Weight
Wet Weight239.0 kg (526.9 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. Floating discs. ABS.
Front Brake Diameter290 mm (11.4 inches)
Rear BrakesSingle disc. ABS.
Rear Brake Diameter226 mm (8.9 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Ninja Z H2. This Sport model is powered by a Liquid-cooled, 4-stroke In-Line Four with Supercharger In-line four, four-stroke engine with 998.0 ccm (60.90 cubic inches) of actual displacement before 11.2:1 compression. Fueling is metered via Injection allowing this machine to produce its 197.1 HP (143.9 kW) @ 11000 RPM horsepower and 137.0 Nm (14.0 kgf-m or 101.1 ft.lbs) @ 8500 RPM torque. According to our records engine heat of the Kawasaki Ninja Z H2 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/55-ZR17 . The entire package is supported by the frame, Trellis, high-tensile steel with Swingarm Mounting Plate. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating discs. ABS. front brakes and Single disc. ABS. rear brakes. The Kawasaki Ninja Z H2 was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
