2020 Kawasaki Vulcan 1700 ABS Voyager Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Kawasaki Vulcan 1700 ABS Voyager.

Basic Specs

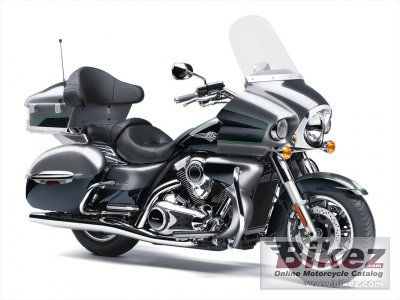

Kawasaki Vulcan 1700 ABS Voyager
Year2020
MakeKawasaki
ModelKawasaki Vulcan 1700 ABS Voyager
CostUS$ 17499. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement1700.0 ccm (103.73 cubic inches)
Type52° V-twin
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke102.0 x 104.0 mm (4.0 x 4.1 inches)
Valves/Cylinder4
FuelingInjection. DFI with dual 42mm throttle bodies
IgnitionTCBI with digital advance
Exhaust
LubricationForced lubrication, semi and #8209;dry sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
Clutch
DrivelineCarbon fiber-reinforced belt

Performance

Horespower73.0 HP (53.3 kW) @ 5000 RPM
Torque145.9 Nm (14.9 kgf-m or 107.6 ft.lbs) @ 2750 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.06 litres (5.30 US gallons)
Emissions

Chassis

Frame TypeSteel, double-cradle with box-section single-tube backbone
Rake30.0 deg
Trail178 mm (7.0 inches)
Front Suspension45mm hydraulic fork
Front Travel140 mm (5.5 inches)
Rear SuspensionSwingarm with twin air-assisted shocks, with 4-way rebound damping
Rear Travel79 mm (3.1 inches)
Seat
Seat Height729 mm (28.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1549 mm (61.0 inches)
Total Length2560 mm (100.8 inches)
Total Width996 mm (39.2 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1664 mm (65.5 inches)
Dry Weight
Wet Weight406.1 kg (895.2 pounds)

Wheels & Brakes

Front Tire/Tyre130/90-B16
Rear Tire/Tyre170/70-B16
Front BrakesDouble disc. Dual four-piston calipers, K-ACT II ABS.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Twin-piston caliper, K-ACT II ABS
Rear Brake Diameter300 mm (11.8 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Vulcan 1700 ABS Voyager. This Touring model is powered by a 52° V-twin V2, four-stroke engine with 1700.0 ccm (103.73 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Injection. DFI with dual 42mm throttle bodies allowing this machine to produce its 73.0 HP (53.3 kW) @ 5000 RPM horsepower and 145.9 Nm (14.9 kgf-m or 107.6 ft.lbs) @ 2750 RPM torque. According to our records engine heat of the Kawasaki Vulcan 1700 ABS Voyager is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 130/90-B16 and the rear is 170/70-B16 . The entire package is supported by the frame, Steel, double-cradle with box-section single-tube backbone. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Dual four-piston calipers, K-ACT II ABS. front brakes and Single disc. Twin-piston caliper, K-ACT II ABS rear brakes. The Kawasaki Vulcan 1700 ABS Voyager was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

.
