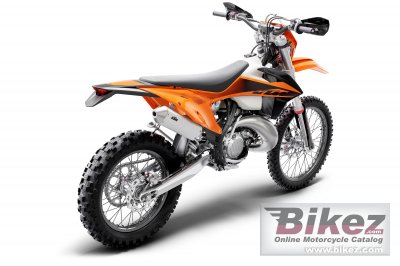

2020 KTM 150 EXC TPI Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 KTM 150 EXC TPI.

Basic Specs

KTM 150 EXC TPI
Year2020
MakeKTM
ModelKTM 150 EXC TPI
Cost

Engine

Displacement143.7 ccm (8.77 cubic inches)
TypeReed intake.
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke58.0 x 54.5 mm (2.3 x 2.1 inches)
Valves/Cylinder
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchMulti-plate clutch, Brembo hydraulics
Driveline14:50. Primary drive: 23:73.

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption2.62 litres/100 km (38.2 km/l or 89.78 mpg)
Fuel Capacity9.00 litres (2.38 US gallons)
Emissions60.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeCentral double-cradle-type 25CrMo4 steel
Rake26.5 deg
Trail
Front SuspensionWP XPlor 48 upside-down fork
Front Travel300 mm (11.8 inches)
Rear SuspensionWP Xplor PDS shock absorber
Rear Travel310 mm (12.2 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance370 mm (14.6 inches)
Wheelbase1471 mm (57.9 inches)
Dry Weight96.8 kg (213.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Brembo twin-piston floating calliper
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Brembo single-piston floating calliper
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM 150 EXC TPI. This Enduro / offroad model is powered by a Reed intake. Single cylinder, two-stroke engine with 143.7 ccm (8.77 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 150 EXC TPI is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Central double-cradle-type 25CrMo4 steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Brembo twin-piston floating calliper front brakes and Single disc. Brembo single-piston floating calliper rear brakes. The KTM 150 EXC TPI was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
