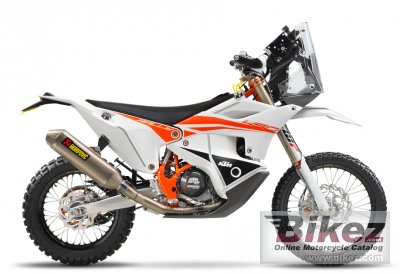

These are the known mechanical and performance specifications for your 2020 KTM 450 Rally Replica.
Basic Specs

Engine
Displacement449.3 ccm (27.42 cubic inches)
TypeTwo titanium intake valves plus two steel exhaust valves
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke95.0 x 63.4 mm (3.7 x 2.5 inches)
Valves/Cylinder
FuelingInjection
IgnitionKeihin EMS
Exhaust
LubricationForced oil lubrication with 2 oil pumps
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchWet multi-disc clutch, hydraulically actuated
Driveline5/8 x 1/4
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity8.50 litres (2.25 US gallons)
Emissions
Chassis
Frame TypeChrome-moly tubular space frame, powder-coated
Rake26.5 deg
Trail
Front SuspensionWP-USD Xplor 48 with preload adjuster
Front Travel305 mm (12.0 inches)
Rear SuspensionWP Xplor PDS shock absorber
Rear Travel305 mm (12.0 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance355 mm (14.0 inches)
Wheelbase1482 mm (58.3 inches)
Dry Weight139.0 kg (306.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Brake calipers on floating bearings
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Brake calipers on floating bearings
Rear Brake Diameter240 mm (9.4 inches)
Wheels
Comments
