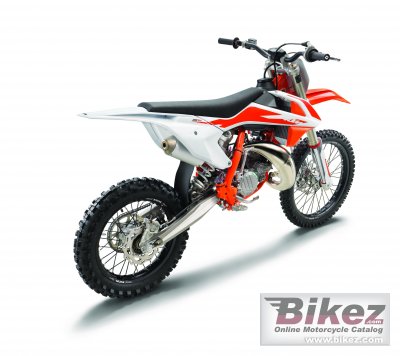

These are the known mechanical and performance specifications for your 2020 KTM 85 SX 19-16.
Basic Specs
Engine
Displacement84.9 ccm (5.18 cubic inches)
TypeReed intake.
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke47.0 x 49.0 mm (1.9 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni TMX
IgnitionMoric Digital 2M1
Exhaust
LubricationMixture oil lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchWet, multi-disc clutch, Formula hydraulics
Driveline1/2 - x - 5/16
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.00 litres (1.32 US gallons)
Emissions
Chassis
Frame TypeCentral-tube frame with double-cradle
Rake24.0 deg
Trail
Front SuspensionWP upside-down Ø 43 mm
Front Travel278 mm (10.9 inches)
Rear SuspensionWP PDS shock absorber
Rear Travel305 mm (12.0 inches)
Seat
Seat Height890 mm (35.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance362 mm (14.3 inches)
Wheelbase1290 mm (50.8 inches)
Dry Weight68.0 kg (149.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Four-piston calipers.
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc. Two-piston calipers.
Rear Brake Diameter210 mm (8.3 inches)
Wheels
