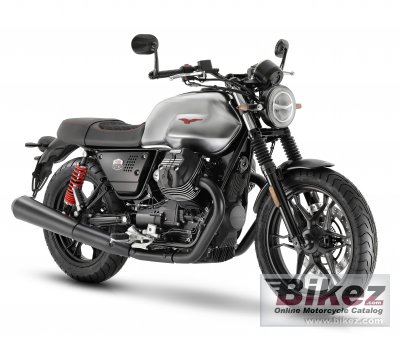

2020 Moto Guzzi V7III Stone S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Moto Guzzi V7III Stone S.

Basic Specs

Moto Guzzi V7III Stone S
Year2020
MakeMoto Guzzi
ModelMoto Guzzi V7III Stone S
Cost

Engine

Displacement744.0 ccm (45.40 cubic inches)
Type90° V-twin
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke80.0 x 74.0 mm (3.1 x 2.9 inches)
Valves/Cylinder
FuelingInjection. Weber-Marelli
Ignition
ExhaustThree-way catalytic converter with double lambda probe
LubricationForced circulation with lobe pump - circuit capacity: 1.78 Kg
CoolingAir

Drivetrain

Gearbox5-speed
Final Drive
ClutchDry single plate with flexible couplings
DrivelineCA.R.C. Compact Reactive Shaft Drive

Performance

Horespower52.0 HP (38.0 kW) @ 6200 RPM
Torque60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 4900 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity21.00 litres (5.55 US gallons)
Emissions

Chassis

Frame TypeDouble cradle tubular frame in ALS steel with detachable rear subframe
Rake26.4 deg
Trail106 mm (4.2 inches)
Front SuspensionTelescopic hydraulic fork with 40 mm stanchions
Front Travel130 mm (5.1 inches)
Rear SuspensionDie cast light alloy swing arm with 2 spring preload adjustable shock absorbers
Rear Travel93 mm (3.7 inches)
Seat
Seat Height770 mm (30.3 inches) If adjustable, lowest setting.
Alt. Seat Height803 mm (31.6 inches) If adjustable, highest setting.
Total Height1110 mm (43.7 inches)
Total Length2185 mm (86.0 inches)
Total Width800 mm (31.5 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1463 mm (57.6 inches)
Dry Weight
Wet Weight189.0 kg (416.7 pounds)

Wheels & Brakes

Front Tire/Tyre100/90-18
Rear Tire/Tyre130/80-17
Front BrakesSingle disc. Brembo caliper with 4 differentiated pistons
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Floating disc. Two-piston calipers.
Rear Brake Diameter260 mm (10.2 inches)
WheelsAluminium spoked black anodised rims

Comments

It appears you're interested in specifications for the Moto Guzzi V7III Stone S. This Allround model is powered by a 90° V-twin V2, four-stroke engine with 744.0 ccm (45.40 cubic inches) of actual displacement before compression. Fueling is metered via Injection. Weber-Marelli allowing this machine to produce its 52.0 HP (38.0 kW) @ 6200 RPM horsepower and 60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 4900 RPM torque. According to our records engine heat of the Moto Guzzi V7III Stone S is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 100/90-18 and the rear is 130/80-17 . The entire package is supported by the frame, Double cradle tubular frame in ALS steel with detachable rear subframe. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Brembo caliper with 4 differentiated pistons front brakes and Single disc. Floating disc. Two-piston calipers. rear brakes. The Moto Guzzi V7III Stone S was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
