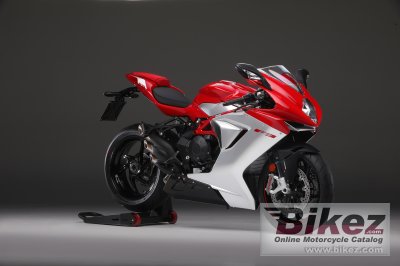

2020 MV Agusta F3 675 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 MV Agusta F3 675.

Basic Specs

MV Agusta F3 675
Year2020
MakeMV Agusta
ModelMV Agusta F3 675
TypeSport
Cost Euro 15490

Engine

Displacement675.0 ccm (41.19 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression13.1:1
Bore/Stroke79.0 x 45.9 mm (3.1 x 1.8 inches)
Valves/Cylinder4
FuelingInjection. Integrated ignition - injection system MVICS (Motor and Vehicle Integrated Control System)
IgnitionDigital CDI
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, multi plate with slipper clutch
Driveline

Performance

Horespower124.0 HP (90.5 kW) @ 14500 RPM
Torque96.3 Nm (9.8 kgf-m or 71.0 ft.lbs) @ 10900 RPM
Top Speed251.0 km/h (156.0 mph)

Fuel Economy & Polution

Fuel Consumption6.80 litres/100 km (14.7 km/l or 34.59 mpg)
Fuel Capacity16.50 litres (4.36 US gallons)
Emissions157.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeALS Steel tubular trellis
Rake
Trail99 mm (3.9 inches)
Front SuspensionMarzocchi ”œUPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Front Travel125 mm (4.9 inches)
Rear SuspensionProgressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment
Rear Travel123 mm (4.8 inches)
Seat2-person seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2060 mm (81.1 inches)
Total Width725 mm (28.5 inches)
Ground Clearance125 mm (4.9 inches)
Wheelbase1380 mm (54.3 inches)
Dry Weight173.0 kg (381.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the MV Agusta F3 675. This Sport model is powered by a In-line three, four-stroke engine with 675.0 ccm (41.19 cubic inches) of actual displacement before 13.1:1 compression. Fueling is metered via Injection. Integrated ignition - injection system MVICS (Motor and Vehicle Integrated Control System) allowing this machine to produce its 124.0 HP (90.5 kW) @ 14500 RPM horsepower and 96.3 Nm (9.8 kgf-m or 71.0 ft.lbs) @ 10900 RPM torque. According to our records engine heat of the MV Agusta F3 675 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, ALS Steel tubular trellis. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS front brakes and Single disc. ABS rear brakes. The MV Agusta F3 675 was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
