2020 Suzuki AX4 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Suzuki AX4.

Basic Specs

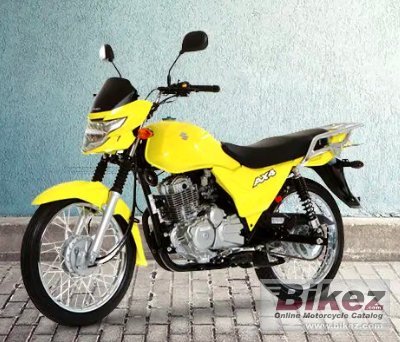

Suzuki AX4
Year2020
MakeSuzuki
ModelSuzuki AX4
Cost

Engine

Displacement149.5 ccm (9.12 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke57.0 x 58.6 mm (2.2 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionCDI
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox5-speed
Final Drive
ClutchWet, multi-disc
Driveline

Performance

Horespower11.0 HP (8.0 kW) @ 8000 RPM
Torque11.5 Nm (1.2 kgf-m or 8.5 ft.lbs) @ 5000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.50 litres (3.30 US gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic, coil spring, oil damped
Front Travel
Rear SuspensionSwingarm Type, Oil Damped
Rear Travel
Seat
Seat Height765 mm (30.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1075 mm (42.3 inches)
Total Length2055 mm (80.9 inches)
Total Width750 mm (29.5 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase1310 mm (51.6 inches)
Dry Weight
Wet Weight133.0 kg (293.2 pounds)

Wheels & Brakes

Front Tire/Tyre2.75-18
Rear Tire/Tyre90/90-18
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Suzuki AX4. This Naked bike model is powered by a Single cylinder, four-stroke engine with 149.5 ccm (9.12 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 11.0 HP (8.0 kW) @ 8000 RPM horsepower and 11.5 Nm (1.2 kgf-m or 8.5 ft.lbs) @ 5000 RPM torque. According to our records engine heat of the Suzuki AX4 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 2.75-18 and the rear is 90/90-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Suzuki AX4 was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Sold in Asia.
