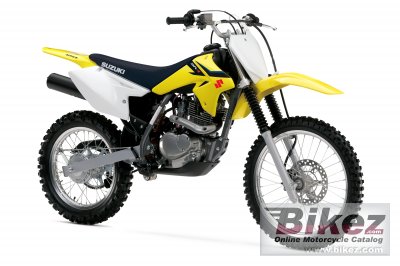

These are the known mechanical and performance specifications for your 2020 Suzuki DR-Z125L.
Basic Specs
Year2020
MakeSuzuki
ModelSuzuki DR-Z125L
TypeEnduro / offroad
CostUS$ 3299. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement124.0 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke57.0 x 48.8 mm (2.2 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni VM20SS
IgnitionCDI
Exhaust
LubricationWet sump
CoolingAir
Drivetrain
Gearbox5-speed
Final Drive
ClutchRack-and-pinion manual clutch
DrivelineChain, DID 428HG, 130 links
Chassis
Frame TypeSteel pipe frame and rear beam-style swingarm
Rake
Trail
Front SuspensionTelescopi fork
Front Travel
Rear SuspensionLink type, coil spring, oil damped
Rear Travel
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1110 mm (43.7 inches)
Total Length1855 mm (73.0 inches)
Total Width770 mm (30.3 inches)
Ground Clearance
Wheelbase1270 mm (50.0 inches)
Dry Weight
Wet Weight89.0 kg (196.2 pounds)
Wheels & Brakes
Front Tire/Tyre70/100-19
Rear Tire/Tyre90/100-16
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
WheelsAluminum rims, wire spoked
Comments
