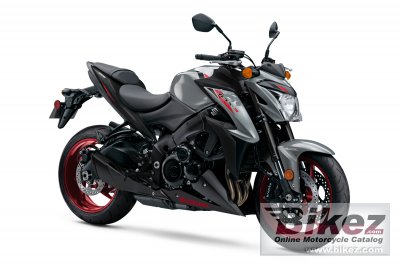

2020 Suzuki GSX-S1000 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Suzuki GSX-S1000.

Basic Specs

Suzuki GSX-S1000
Year2020
MakeSuzuki
ModelSuzuki GSX-S1000
TypeSport
Cost

Engine

Displacement999.0 ccm (60.96 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression12.2:1
Bore/Stroke73.4 x 59.0 mm (2.9 x 2.3 inches)
Valves/Cylinder4
FuelingInjection. 10-hole injectors on each 44mm throttle body
IgnitionElectronic ignition (Transistorized)
ExhaustStainless steel, 4-2-1 exhaust system
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, multi-plate type
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 US gallons)
Emissions

Chassis

Frame TypeTwin-spar aluminum
Rake25.0 deg
Trail100 mm (3.9 inches)
Front SuspensionKYB inverted telescopic, coil spring, oil damped
Front Travel120 mm (4.7 inches)
Rear SuspensionLink type, single shock, coil spring, oil damped
Rear Travel
Seat
Seat Height815 mm (32.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1080 mm (42.5 inches)
Total Length2115 mm (83.3 inches)
Total Width795 mm (31.3 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1460 mm (57.5 inches)
Dry Weight209.0 kg (460.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/50-ZR17
Front BrakesDouble disc. Brembo 4-piston, ABS
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Nissin, 1-piston, single disc, ABS
Rear Brake Diameter240 mm (9.4 inches)
WheelsCast aluminum

Comments

It appears you're interested in specifications for the Suzuki GSX-S1000. This Sport model is powered by a In-line four, four-stroke engine with 999.0 ccm (60.96 cubic inches) of actual displacement before 12.2:1 compression. Fueling is metered via Injection. 10-hole injectors on each 44mm throttle body allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki GSX-S1000 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/50-ZR17 . The entire package is supported by the frame, Twin-spar aluminum. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Brembo 4-piston, ABS front brakes and Single disc. Nissin, 1-piston, single disc, ABS rear brakes. The Suzuki GSX-S1000 was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Traction Control.
