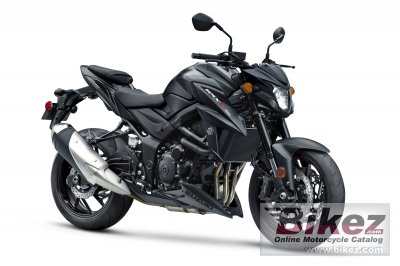

2020 Suzuki GSX-S750 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Suzuki GSX-S750.

Basic Specs

Suzuki GSX-S750
Year2020
MakeSuzuki
ModelSuzuki GSX-S750
TypeSport
CostUS$ 8499. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement749.0 ccm (45.70 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression12.3:1
Bore/Stroke72.0 x 46.0 mm (2.8 x 1.8 inches)
Valves/Cylinder4
FuelingInjection. Ten-hole, long-nose fuel injectors
IgnitionTransistorized digital ignition system
ExhaustStainless steel, 4-2-1 exhaust system
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
Clutch
DrivelineRK 525, 114 links

Performance

Horespower112.7 HP (82.2 kW) @ 10500 RPM
Torque81.0 Nm (8.3 kgf-m or 59.7 ft.lbs) @ 9000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity16.00 litres (4.23 US gallons)
Emissions

Chassis

Frame TypeTwin-spar aluminum
Rake
Trail
Front SuspensionKYB inverted Telescopic, coil spring, oil damped
Front Travel120 mm (4.7 inches)
Rear SuspensionLink type, coil spring, oil damped
Rear Travel130 mm (5.1 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1055 mm (41.5 inches)
Total Length2125 mm (83.7 inches)
Total Width785 mm (30.9 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1455 mm (57.3 inches)
Dry Weight
Wet Weight211.0 kg (465.2 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Nissin, 4-piston
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Nissin, 1-piston
Rear Brake Diameter220 mm (8.7 inches)
Wheels10-spoke cast aluminum

Comments

It appears you're interested in specifications for the Suzuki GSX-S750. This Sport model is powered by a In-line four, four-stroke engine with 749.0 ccm (45.70 cubic inches) of actual displacement before 12.3:1 compression. Fueling is metered via Injection. Ten-hole, long-nose fuel injectors allowing this machine to produce its 112.7 HP (82.2 kW) @ 10500 RPM horsepower and 81.0 Nm (8.3 kgf-m or 59.7 ft.lbs) @ 9000 RPM torque. According to our records engine heat of the Suzuki GSX-S750 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Twin-spar aluminum . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Nissin, 4-piston front brakes and Single disc. Nissin, 1-piston rear brakes. The Suzuki GSX-S750 was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
