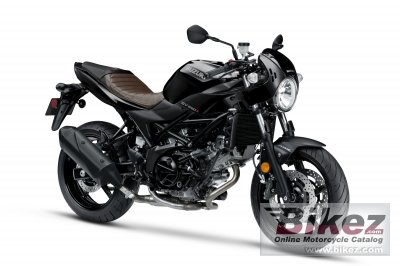

2020 Suzuki SV650X Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Suzuki SV650X.

Basic Specs

Suzuki SV650X
Year2020
MakeSuzuki
ModelSuzuki SV650X
CostUS$ 8399. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement645.0 ccm (39.36 cubic inches)
Type90-degree V-Twin
DetailsV2, four-stroke
Max RPM10000
Compression11.2:1
Bore/Stroke81.0 x 62.6 mm (3.2 x 2.5 inches)
Valves/Cylinder2
FuelingInjection. 39mm throttle bodies. Ten-hole, long-nose-type injectors.
IgnitionTransistorised
Exhaust2-into-1 system
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, multi-plate
DrivelineDID 520V0, 112 links

Performance

Horespower75.0 HP (54.7 kW) @ 8400 RPM
Torque64.0 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 6400 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption3.22 litres/100 km (31.1 km/l or 73.05 mpg)
Fuel Capacity14.50 litres (3.83 US gallons)
Emissions74.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTrellis, steel
Rake25.0 deg
Trail104 mm (4.1 inches)
Front SuspensionTelescopic, coil spring, oil damped
Front Travel125 mm (4.9 inches)
Rear SuspensionLink type, single shock, coil spring, oil damped
Rear Travel63 mm (2.5 inches)
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1090 mm (42.9 inches)
Total Length2140 mm (84.3 inches)
Total Width730 mm (28.7 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1445 mm (56.9 inches)
Dry Weight
Wet Weight198.0 kg (436.5 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre160/60-ZR17
Front BrakesDouble disc. Dual four-piston Tokico brake calipers. ABS.
Front Brake Diameter290 mm (11.4 inches)
Rear BrakesSingle disc. 1-piston caliper.ABS.
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Suzuki SV650X. This Naked bike model is powered by a 90-degree V-Twin V2, four-stroke engine with 645.0 ccm (39.36 cubic inches) of actual displacement before 11.2:1 compression. Fueling is metered via Injection. 39mm throttle bodies. Ten-hole, long-nose-type injectors. allowing this machine to produce its 75.0 HP (54.7 kW) @ 8400 RPM horsepower and 64.0 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 6400 RPM torque. According to our records engine heat of the Suzuki SV650X is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 160/60-ZR17 . The entire package is supported by the frame, Trellis, steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Dual four-piston Tokico brake calipers. ABS. front brakes and Single disc. 1-piston caliper.ABS. rear brakes. The Suzuki SV650X was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
