2020 Triumph Bonneville Bobber Specs

motorcycle specs

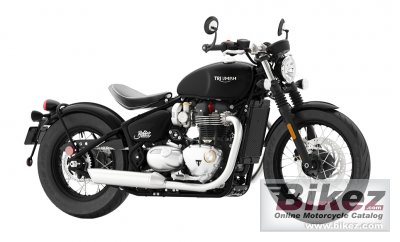

These are the known mechanical and performance specifications for your 2020 Triumph Bonneville Bobber.

Basic Specs

Triumph Bonneville Bobber
Year2020
MakeTriumph
ModelTriumph Bonneville Bobber
Cost

Engine

Displacement1200.0 ccm (73.22 cubic inches)
Type270° crank angle parallel twin
DetailsTwin, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke97.6 x 80.0 mm (3.8 x 3.1 inches)
Valves/Cylinder
FuelingInjection. Multipoint sequential electronic fuel injection with SAI
IgnitionDigital-inductive type via engine management system
ExhaustBrushed stainless steel 2 into 2 twin-skin exhaust system with brushed stainless silencers.
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, multi-plate assist clutch
DrivelineX ring chain. Primary drive: Gear.

Performance

Horespower76.0 HP (55.5 kW) @ 6100 RPM
Torque106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 4000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption4.10 litres/100 km (24.4 km/l or 57.37 mpg)
Fuel Capacity9.00 litres (2.38 US gallons)
Emissions95.1 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular steel cradle. Twin-sided, tubular steel swing arm.
Rake25.8 deg
Trail88 mm (3.5 inches)
Front SuspensionKYB 41mm forks
Front Travel90 mm (3.5 inches)
Rear SuspensionKYB monoshock with linkage
Rear Travel77 mm (3.0 inches)
SeatSolo seat
Seat Height690 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1025 mm (40.4 inches)
Total Length
Total Width800 mm (31.5 inches)
Ground Clearance
Wheelbase1510 mm (59.4 inches)
Dry Weight228.0 kg (502.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/90-19
Rear Tire/Tyre150/80-R16
Front BrakesSingle disc. ABS. Nissin 2-piston floating caliper
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. ABS. Nissin single piston floating caliper.
Rear Brake Diameter255 mm (10.0 inches)
WheelsWire 32-spoke, steel rims

Comments

It appears you're interested in specifications for the Triumph Bonneville Bobber. This Allround model is powered by a 270° crank angle parallel twin Twin, four-stroke engine with 1200.0 ccm (73.22 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. Multipoint sequential electronic fuel injection with SAI allowing this machine to produce its 76.0 HP (55.5 kW) @ 6100 RPM horsepower and 106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 4000 RPM torque. According to our records engine heat of the Triumph Bonneville Bobber is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 100/90-19 and the rear is 150/80-R16 . The entire package is supported by the frame, Tubular steel cradle. Twin-sided, tubular steel swing arm.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. Nissin 2-piston floating caliper front brakes and Single disc. ABS. Nissin single piston floating caliper. rear brakes. The Triumph Bonneville Bobber was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
