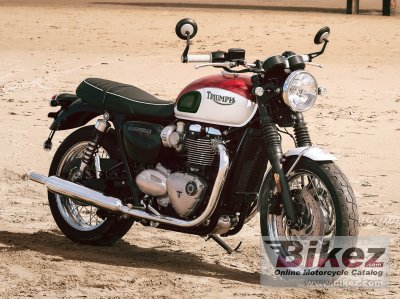

2020 Triumph Bonneville T120 Bud Ekins Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Triumph Bonneville T120 Bud Ekins.

Basic Specs

Triumph Bonneville T120 Bud Ekins
Year2020
MakeTriumph
ModelTriumph Bonneville T120 Bud Ekins
Cost

Engine

Displacement1200.0 ccm (73.22 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke97.6 x 80.0 mm (3.8 x 3.1 inches)
Valves/Cylinder4
FuelingInjection. Multipoint sequential electronic fuel injection
IgnitionDigital-inductive type via engine management system
ExhaustChromed 2 into 2 exhaust system with twin chrome silencers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, multi-plate assist clutch
DrivelineX ring chain. Primary drive: Gear.

Performance

Horespower80.0 HP (58.4 kW) @ 6550 RPM
Torque105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 3100 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption4.50 litres/100 km (22.2 km/l or 52.27 mpg)
Fuel Capacity14.50 litres (3.83 US gallons)
Emissions104.4 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular steel cradle. Twin-sided, tubular steel swing arm.
Rake25.5 deg
Trail105 mm (4.1 inches)
Front SuspensionKyb 41mm cartidge forks,
Front Travel120 mm (4.7 inches)
Rear SuspensionKyb twin shocks with adjustable preload,
Rear Travel120 mm (4.7 inches)
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1100 mm (43.3 inches)
Total Length2230 mm (87.8 inches)
Total Width785 mm (30.9 inches)
Ground Clearance
Wheelbase1450 mm (57.1 inches)
Dry Weight224.0 kg (493.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/90-18
Rear Tire/Tyre150/70-R17
Front BrakesSingle disc. ABS. Nissin 2-piston floating caliper
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. ABS. Nissin 2-piston floating caliper
Rear Brake Diameter255 mm (10.0 inches)
WheelsWire spoked.

Comments

It appears you're interested in specifications for the Triumph Bonneville T120 Bud Ekins. This Classic model is powered by a Twin, four-stroke engine with 1200.0 ccm (73.22 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. Multipoint sequential electronic fuel injection allowing this machine to produce its 80.0 HP (58.4 kW) @ 6550 RPM horsepower and 105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 3100 RPM torque. According to our records engine heat of the Triumph Bonneville T120 Bud Ekins is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 100/90-18 and the rear is 150/70-R17 . The entire package is supported by the frame, Tubular steel cradle. Twin-sided, tubular steel swing arm.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. Nissin 2-piston floating caliper front brakes and Single disc. ABS. Nissin 2-piston floating caliper rear brakes. The Triumph Bonneville T120 Bud Ekins was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Special edition
