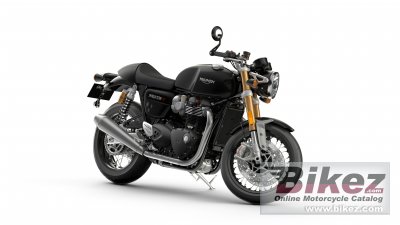

2020 Triumph Thruxton 1200RS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Triumph Thruxton 1200RS.

Basic Specs

Triumph Thruxton 1200RS
Year2020
MakeTriumph
ModelTriumph Thruxton 1200RS
Cost

Engine

Displacement1200.0 ccm (73.22 cubic inches)
Type270-º firing interval
DetailsTwin, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke97.6 x 80.0 mm (3.8 x 3.1 inches)
Valves/Cylinder4
FuelingInjection. Multipoint sequential electronic fuel injection
Ignition
ExhaustBrushed 2-into-2 exhaust system with twin brushed silencers
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, multi-plate assist clutch
DrivelineO ring chain

Performance

Horespower103.0 HP (75.2 kW) @ 7500 RPM
Torque112.6 Nm (11.5 kgf-m or 83.0 ft.lbs) @ 4250 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption4.60 litres/100 km (21.7 km/l or 51.13 mpg)
Fuel Capacity14.50 litres (3.83 US gallons)
Emissions106.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular steel cradle
Rake22.8 deg
Trail92 mm (3.6 inches)
Front SuspensionShowa 43mm USD big piston forks, fully adjustable
Front Travel120 mm (4.7 inches)
Rear SuspensionFully adjustable Ohlins twin shocks with piggy back reservoir
Rear Travel120 mm (4.7 inches)
SeatSingle bullet seat set-up with painted seat cowl
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1030 mm (40.6 inches)
Total Length2150 mm (84.6 inches)
Total Width745 mm (29.3 inches)
Ground Clearance
Wheelbase1415 mm (55.7 inches)
Dry Weight203.0 kg (447.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre160/60-ZR17
Front BrakesDouble disc. ABS. Brembo. 4-piston radial monobloc calipers
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. ABS. Nissin. 2-piston floating caliper
Rear Brake Diameter220 mm (8.7 inches)
Wheels32-spoke, aluminum rims

Comments

It appears you're interested in specifications for the Triumph Thruxton 1200RS. This Classic model is powered by a 270-º firing interval Twin, four-stroke engine with 1200.0 ccm (73.22 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection. Multipoint sequential electronic fuel injection allowing this machine to produce its 103.0 HP (75.2 kW) @ 7500 RPM horsepower and 112.6 Nm (11.5 kgf-m or 83.0 ft.lbs) @ 4250 RPM torque. According to our records engine heat of the Triumph Thruxton 1200RS is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 160/60-ZR17 . The entire package is supported by the frame, Tubular steel cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Brembo. 4-piston radial monobloc calipers front brakes and Single disc. ABS. Nissin. 2-piston floating caliper rear brakes. The Triumph Thruxton 1200RS was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
