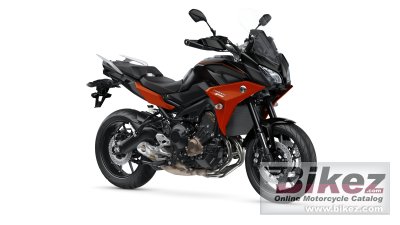

2020 Yamaha Tracer 900 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Yamaha Tracer 900.

Basic Specs

Yamaha Tracer 900
Year2020
MakeYamaha
ModelYamaha Tracer 900
Cost

Engine

Displacement847.0 ccm (51.68 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke78.0 x 59.0 mm (3.1 x 2.3 inches)
Valves/Cylinder4
FuelingInjection
IgnitionTCI
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchMultiplate assist and slipper clutch
Driveline

Performance

Horespower115.0 HP (83.9 kW) @ 10000 RPM
Torque87.2 Nm (8.9 kgf-m or 64.3 ft.lbs) @ 8500 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption4.30 litres/100 km (23.3 km/l or 54.70 mpg)
Fuel Capacity18.00 litres (4.76 US gallons)
Emissions99.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeDiamond
Rake24.0 deg
Trail100 mm (3.9 inches)
Front Suspension41mm inverted fork, adjustable preload and rebound damping
Front Travel137 mm (5.4 inches)
Rear SuspensionAdjustable link-type Monocross
Rear Travel137 mm (5.4 inches)
Seat
Seat Height850 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1345 mm (53.0 inches)
Total Length2160 mm (85.0 inches)
Total Width850 mm (33.5 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1501 mm (59.1 inches)
Dry Weight
Wet Weight214.0 kg (471.8 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Hydraulic. ABS.
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc. Hydraulic. ABS.
Rear Brake Diameter245 mm (9.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Yamaha Tracer 900. This Super motard model is powered by a In-line three, four-stroke engine with 847.0 ccm (51.68 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection allowing this machine to produce its 115.0 HP (83.9 kW) @ 10000 RPM horsepower and 87.2 Nm (8.9 kgf-m or 64.3 ft.lbs) @ 8500 RPM torque. According to our records engine heat of the Yamaha Tracer 900 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Diamond. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Hydraulic. ABS. front brakes and Single disc. Hydraulic. ABS. rear brakes. The Yamaha Tracer 900 was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
