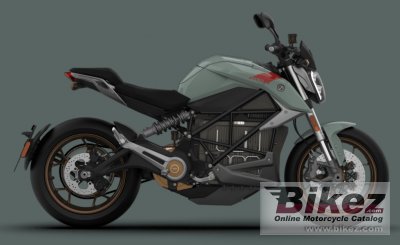

2020 Zero SR-F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Zero SR-F.

Basic Specs

Zero SR-F
Year2020
MakeZero
ModelZero SR-F
TypeSport
Cost

Engine

Displacement
TypeRadial flux, permanent high-temp magnet, brushless motor
DetailsElectric
Max RPM
Compression
Bore/Stroke
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox
Final Drive
ClutchClutchless direct drive
Driveline

Performance

Horespower110.0 HP (80.3 kW) @ 5000 RPM
Torque144.0 Nm (14.7 kgf-m or 106.2 ft.lbs)
Top Speed199.6 km/h (124.0 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame Type
Rake24.5 deg
Trail94 mm (3.7 inches)
Front SuspensionShowa 43 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Front Travel120 mm (4.7 inches)
Rear SuspensionShowa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Rear Travel140 mm (5.5 inches)
Seat
Seat Height787 mm (31.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1450 mm (57.1 inches)
Dry Weight
Wet Weight220.0 kg (485.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesSingle disc. ABS. Floating discs. Two-piston calipers.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Single-piston caliper.
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Zero SR-F. This Sport model is powered by a Radial flux, permanent high-temp magnet, brushless motor Electric engine with of actual displacement before compression. Fueling is metered via allowing this machine to produce its 110.0 HP (80.3 kW) @ 5000 RPM horsepower and 144.0 Nm (14.7 kgf-m or 106.2 ft.lbs) torque. According to our records engine heat of the Zero SR-F is moderated by Air. You'll need to get familiar with the transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 180/55-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. Floating discs. Two-piston calipers. front brakes and Single disc. ABS. Single-piston caliper. rear brakes. The Zero SR-F was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Range up to 161miles. 7.9 hour charging. Lithium Ion 12.5 kWh battery. Various battery options called ZF13.0 and ZF13.0 + Power Tank.
