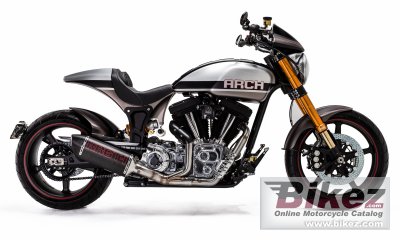

2021 Arch KRGT-1 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Arch KRGT-1.

Basic Specs

Arch KRGT-1
Year2021
MakeArch
ModelArch KRGT-1
TypeSport
CostUS$ 89000. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement2032.0 ccm (123.99 cubic inches)
TypeBlack S and S 45 degree V-Twin
DetailsV2, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke104.8 x 117.5 mm (4.1 x 4.6 inches)
Valves/Cylinder
FuelingInjection
Ignition
ExhaustArch 2-into-1 stainless steel. Yoshimura carbon fiber muffler.
Lubrication
Cooling

Drivetrain

Gearbox6-speed
Final Drive
ClutchDry
Driveline

Performance

Horespower120.0 HP (87.6 kW)
Torque164.1 Nm (16.7 kgf-m or 121.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.93 litres (5.00 US gallons)
Emissions

Chassis

Frame TypeTubular steel with a billet aluminum subframe and swingarm.
Rake30.0 deg
Trail127 mm (5.0 inches)
Front Suspension48mm Öhlins forks featuring NIX technology
Front Travel
Rear SuspensionOhlins / Arch proprietary rear shock with reservoir, hydraulic pre-load adjustment, fully adjustable
Rear Travel
Seat
Seat Height706 mm (27.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1727 mm (68.0 inches)
Dry Weight244.0 kg (538.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR19
Rear Tire/Tyre240/40-R18
Front BrakesDouble disc. ABS. 6 piston monobloc radial mount calipers.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Four-piston monobloc radial mount caliper.
Rear Brake Diameter266 mm (10.5 inches)
WheelsCarbon fiber wheels. Michelin Commander II tires.

Comments

It appears you're interested in specifications for the Arch KRGT-1. This Sport model is powered by a Black S and S 45 degree V-Twin V2, four-stroke engine with 2032.0 ccm (123.99 cubic inches) of actual displacement before 10.8:1 compression. Fueling is metered via Injection allowing this machine to produce its 120.0 HP (87.6 kW) horsepower and 164.1 Nm (16.7 kgf-m or 121.0 ft.lbs) torque. According to our records engine heat of the Arch KRGT-1 is moderated by . You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR19 and the rear is 240/40-R18 . The entire package is supported by the frame, Tubular steel with a billet aluminum subframe and swingarm.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. 6 piston monobloc radial mount calipers. front brakes and Single disc. ABS. Four-piston monobloc radial mount caliper. rear brakes. The Arch KRGT-1 was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Custom made at ARCH Motorcycle in Los Angeles.
