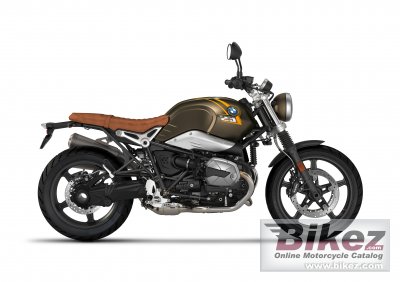

2021 BMW R nineT Scrambler Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 BMW R nineT Scrambler.

Basic Specs

BMW R nineT Scrambler
Year2021
MakeBMW
ModelBMW R nineT Scrambler
Cost

Engine

Displacement1170.0 ccm (71.39 cubic inches)
TypeRadially aligned valves per cylinder, central balancer shaft
DetailsTwo cylinder boxer, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke101.0 x 73.0 mm (4.0 x 2.9 inches)
Valves/Cylinder4
FuelingInjection. Electronic intake pipe injection Closed-loop 3-way catalytic converter, emission standard EU-3
Ignition
Exhaust
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final Drive
ClutchSingle dry plate clutch, hydraulically operated
DrivelineConstant mesh

Performance

Horespower107.3 HP (78.3 kW) @ 7250 RPM
Torque116.0 Nm (11.8 kgf-m or 85.6 ft.lbs) @ 6000 RPM
Top Speed200.0 km/h (124.3 mph)

Fuel Economy & Polution

Fuel Consumption5.11 litres/100 km (19.6 km/l or 46.03 mpg)
Fuel Capacity17.00 litres (4.49 US gallons)
Emissions118.6 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeThree-section frame consisting of one front and three rear sections, load-bearing engine-gearbox unit, removable pillion frame for single ride use
Rake
Trail
Front SuspensionTelescopic forks with 43 mm fixed-tube diameter
Front Travel125 mm (4.9 inches)
Rear SuspensionCast aluminium single swinging arm with BMW Motorrad Paralever; central spring strut, spring preload steplessly adjustable by hook wrench, rebound-stage damping adjustable
Rear Travel140 mm (5.5 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1330 mm (52.4 inches)
Total Length2175 mm (85.6 inches)
Total Width865 mm (34.1 inches)
Ground Clearance
Wheelbase1527 mm (60.1 inches)
Dry Weight223.0 kg (491.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-R19
Rear Tire/Tyre170/60-R17
Front BrakesDouble disc. ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter265 mm (10.4 inches)
WheelsSpoke cast wheels

Comments

It appears you're interested in specifications for the BMW R nineT Scrambler. This Naked bike model is powered by a Radially aligned valves per cylinder, central balancer shaft Two cylinder boxer, four-stroke engine with 1170.0 ccm (71.39 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection. Electronic intake pipe injection Closed-loop 3-way catalytic converter, emission standard EU-3 allowing this machine to produce its 107.3 HP (78.3 kW) @ 7250 RPM horsepower and 116.0 Nm (11.8 kgf-m or 85.6 ft.lbs) @ 6000 RPM torque. According to our records engine heat of the BMW R nineT Scrambler is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-R19 and the rear is 170/60-R17 . The entire package is supported by the frame, Three-section frame consisting of one front and three rear sections, load-bearing engine-gearbox unit, removable pillion frame for single ride use. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS front brakes and Single disc. ABS rear brakes. The BMW R nineT Scrambler was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
