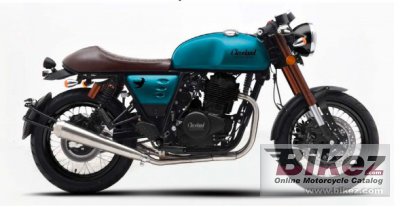

These are the known mechanical and performance specifications for your 2021 Cleveland Ace 400.
Basic Specs
Year2021
MakeCleveland
ModelCleveland Ace 400
TypeClassic
CostUS$ 3995. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement397.0 ccm (24.22 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression8.8:1
Bore/Stroke85.0 x 70.0 mm (3.3 x 2.8 inches)
Valves/Cylinder
FuelingInjection. Delphi
IgnitionCDI
Exhaust
Lubrication
CoolingOil & air
Performance
Horespower42.0 HP (30.7 kW) @ 9200 RPM
Torque34.0 Nm (3.5 kgf-m or 25.1 ft.lbs) @ 7650 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.00 litres (3.96 US gallons)
Emissions
Chassis
Frame TypeTubular backbone, double cradle
Rake
Trail
Front SuspensionInverted forks
Front Travel
Rear SuspensionTwin coil over oil damped shocks
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2050 mm (80.7 inches)
Total Width795 mm (31.3 inches)
Ground Clearance
Wheelbase1410 mm (55.5 inches)
Dry Weight150.0 kg (330.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-18
Rear Tire/Tyre120/80-16
Front BrakesDouble disc. ABS, 4 piston radial mount caliper
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter220 mm (8.7 inches)
WheelsWire spoked
Comments
US brand also called Cleveland Cycle Werks (CCW). Bike made in China.
