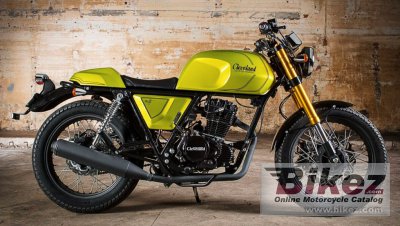

These are the known mechanical and performance specifications for your 2021 Cleveland Misfit 2.
Basic Specs
Engine
Displacement229.0 ccm (13.97 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke67.0 x 65.0 mm (2.6 x 2.6 inches)
Valves/Cylinder
FuelingCarburettor. KF PZ30
IgnitionCDI
Exhaust
Lubrication
CoolingAir
Performance
Horespower15.4 HP (11.2 kW) @ 7000 RPM
Torque16.0 Nm (1.6 kgf-m or 11.8 ft.lbs) @ 6000 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.00 litres (3.96 US gallons)
Emissions
Chassis
Frame TypeTubular backbone, double cradle
Rake25.0 deg
Trail114 mm (4.5 inches)
Front SuspensionInverted forks, 38mm stanchions
Front Travel
Rear SuspensionDual shocks
Rear Travel
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1080 mm (42.5 inches)
Total Length2150 mm (84.6 inches)
Total Width780 mm (30.7 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1400 mm (55.1 inches)
Dry Weight
Wet Weight154.0 kg (339.5 pounds)
Wheels & Brakes
Front Tire/Tyre2.50-18
Rear Tire/Tyre2.75-18
Front BrakesSingle disc. Wave disk
Front Brake Diameter315 mm (12.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
