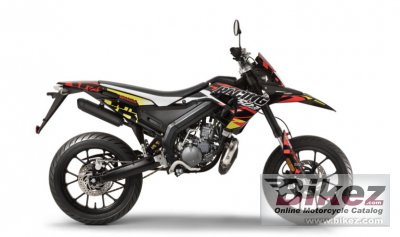

2021 Derbi Senda 50 SM Limited Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Derbi Senda 50 SM Limited.

Basic Specs

Derbi Senda 50 SM Limited
Year2021
MakeDerbi
ModelDerbi Senda 50 SM Limited
Cost

Engine

Displacement50.0 ccm (3.05 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression11.5:1
Bore/Stroke39.9 x 40.0 mm (1.6 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor. DELL´ORTO PHVA 17.5 carburettor
IgnitionCDI
Exhaust
LubricationOil pump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet Multiplate
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption3.14 litres/100 km (31.8 km/l or 74.91 mpg)
Fuel Capacity7.00 litres (1.85 US gallons)
Emissions72.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTwin beam
Rake
Trail
Front SuspensionUpside down
Front Travel240 mm (9.4 inches)
Rear SuspensionAluminium alloy fork, single shock absorber with progressive link system
Rear Travel200 mm (7.9 inches)
Seat
Seat Height875 mm (34.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2055 mm (80.9 inches)
Total Width840 mm (33.1 inches)
Ground Clearance
Wheelbase1395 mm (54.9 inches)
Dry Weight
Wet Weight104.0 kg (229.3 pounds)

Wheels & Brakes

Front Tire/Tyre100/80-17
Rear Tire/Tyre130/70-17
Front BrakesSingle disc. Dual piston floating calliper
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Derbi Senda 50 SM Limited. This Super motard model is powered by a Single cylinder, two-stroke engine with 50.0 ccm (3.05 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Carburettor. DELL´ORTO PHVA 17.5 carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Derbi Senda 50 SM Limited is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 100/80-17 and the rear is 130/70-17 . The entire package is supported by the frame, Twin beam. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Dual piston floating calliper front brakes and Single disc rear brakes. The Derbi Senda 50 SM Limited was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
