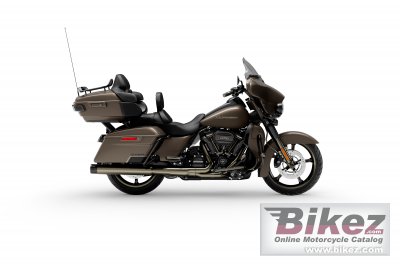

2021 Harley-Davidson CVO Limited Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Harley-Davidson CVO Limited.

Basic Specs

Harley-Davidson CVO Limited
Year2021
MakeHarley-Davidson
ModelHarley-Davidson CVO Limited
CostUS$ 44099. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement1923.0 ccm (117.34 cubic inches)
TypeTwin-Cooled™ Milwaukee-Eight® 117
DetailsV2, four-stroke
Max RPM
Compression10.2:1
Bore/Stroke103.5 x 114.3 mm (4.1 x 4.5 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustDual, with crossover
LubricationDry sump
CoolingOil & air

Drivetrain

Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower105.0 HP (76.6 kW) @ 5250 RPM
Torque169.5 Nm (17.3 kgf-m or 125.0 ft.lbs) @ 3500 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption5.74 litres/100 km (17.4 km/l or 40.98 mpg)
Fuel Capacity22.71 litres (6.00 US gallons)
Emissions133.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0 deg
Trail170 mm (6.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height704 mm (27.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2600 mm (102.4 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1625 mm (64.0 inches)
Dry Weight411.0 kg (906.0 pounds)
Wet Weight428.2 kg (944.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/60-B19
Rear Tire/Tyre180/55-B18
Front BrakesDouble disc. ABS, 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS, 4-piston
Rear Brake Diameter
WheelsGloss Black and Contrast Satin Tomahawk

Comments

It appears you're interested in specifications for the Harley-Davidson CVO Limited. This Touring model is powered by a Twin-Cooled™ Milwaukee-Eight® 117 V2, four-stroke engine with 1923.0 ccm (117.34 cubic inches) of actual displacement before 10.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 105.0 HP (76.6 kW) @ 5250 RPM horsepower and 169.5 Nm (17.3 kgf-m or 125.0 ft.lbs) @ 3500 RPM torque. According to our records engine heat of the Harley-Davidson CVO Limited is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 130/60-B19 and the rear is 180/55-B18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS, 4-piston front brakes and Single disc. ABS, 4-piston rear brakes. The Harley-Davidson CVO Limited was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Cruise control. Alarm. Infotainment.
