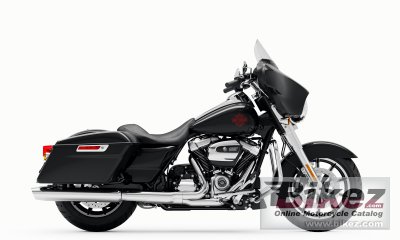

2021 Harley-Davidson Electra Glide Standard Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Harley-Davidson Electra Glide Standard.

Basic Specs

Harley-Davidson Electra Glide Standard
Year2021
MakeHarley-Davidson
ModelHarley-Davidson Electra Glide Standard
CostUS$ 1899. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement1746.0 ccm (106.54 cubic inches)
TypeMilwaukee-Eight™ 107
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke100.0 x 111.0 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower90.0 HP (65.7 kW) @ 5450 RPM
Torque150.0 Nm (15.3 kgf-m or 110.6 ft.lbs) @ 3250 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption5.47 litres/100 km (18.3 km/l or 43.00 mpg)
Fuel Capacity22.71 litres (6.00 US gallons)
Emissions126.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0 deg
Trail170 mm (6.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height663 mm (26.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2400 mm (94.5 inches)
Total Width
Ground Clearance124 mm (4.9 inches)
Wheelbase1625 mm (64.0 inches)
Dry Weight354.3 kg (781.0 pounds)
Wet Weight372.0 kg (820.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/80-B17
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 4-piston
Rear Brake Diameter
WheelsImpeller Cast Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson Electra Glide Standard. This Touring model is powered by a Milwaukee-Eight™ 107 V2, four-stroke engine with 1746.0 ccm (106.54 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 90.0 HP (65.7 kW) @ 5450 RPM horsepower and 150.0 Nm (15.3 kgf-m or 110.6 ft.lbs) @ 3250 RPM torque. According to our records engine heat of the Harley-Davidson Electra Glide Standard is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 130/80-B17 and the rear is 180/65-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. 4-piston front brakes and Single disc. ABS. 4-piston rear brakes. The Harley-Davidson Electra Glide Standard was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Windshield. Cruise control. Optional Alarm.
