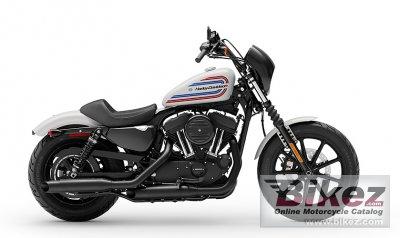

2021 Harley-Davidson Iron 1200 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Harley-Davidson Iron 1200.

Basic Specs

Harley-Davidson Iron 1200
Year2021
MakeHarley-Davidson
ModelHarley-Davidson Iron 1200
CostUS$ 9999. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement1202.0 ccm (73.35 cubic inches)
TypeEvolution® engine
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustBlack, staggered exhaust and headers with black slash-cut mufflers
LubricationDry sump
CoolingAir

Drivetrain

Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
Driveline38/57ratio

Performance

Horespower
Torque99.0 Nm (10.1 kgf-m or 73.0 ft.lbs) @ 3500 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity12.50 litres (3.30 US gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake30.0 deg
Trail109 mm (4.3 inches)
Front SuspensionInverted fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height653 mm (25.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2200 mm (86.6 inches)
Total Width
Ground Clearance109 mm (4.3 inches)
Wheelbase1514 mm (59.6 inches)
Dry Weight248.1 kg (547.0 pounds)
Wet Weight255.8 kg (564.0 pounds)

Wheels & Brakes

Front Tire/Tyre100/90-B19
Rear Tire/Tyre150/80-B16
Front BrakesSingle disc. Dual-piston. Optional ABS.
Front Brake Diameter
Rear BrakesSingle disc. Dual-piston. Optional ABS.
Rear Brake Diameter
WheelsBlack, 9-spoke

Comments

It appears you're interested in specifications for the Harley-Davidson Iron 1200. This Custom / cruiser model is powered by a Evolution® engine V2, four-stroke engine with 1202.0 ccm (73.35 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its horsepower and 99.0 Nm (10.1 kgf-m or 73.0 ft.lbs) @ 3500 RPM torque. According to our records engine heat of the Harley-Davidson Iron 1200 is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 100/90-B19 and the rear is 150/80-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Dual-piston. Optional ABS. front brakes and Single disc. Dual-piston. Optional ABS. rear brakes. The Harley-Davidson Iron 1200 was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
