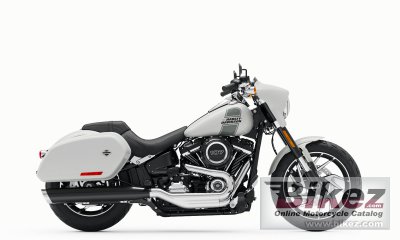

2021 Harley-Davidson Sport Glide Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Harley-Davidson Sport Glide.

Basic Specs

Harley-Davidson Sport Glide
Year2021
MakeHarley-Davidson
ModelHarley-Davidson Sport Glide
CostUS$ 18599. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement1746.0 ccm (106.54 cubic inches)
TypeMilwaukee-Eight® 107
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke100.0 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
Exhaust2-into-1; catalyst in muffler
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 34/46 ratio

Performance

Horespower86.0 HP (62.8 kW) @ 5020 RPM
Torque146.5 Nm (14.9 kgf-m or 108.0 ft.lbs) @ 2750 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Fuel Capacity18.93 litres (5.00 US gallons)
Emissions116.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake30.0 deg
Trail150 mm (5.9 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height653 mm (25.7 inches) If adjustable, lowest setting.
Alt. Seat Height673 mm (26.5 inches) If adjustable, highest setting.
Total Height
Total Length2324 mm (91.5 inches)
Total Width
Ground Clearance120 mm (4.7 inches)
Wheelbase1625 mm (64.0 inches)
Dry Weight304.0 kg (670.2 pounds)
Wet Weight317.0 kg (698.9 pounds)

Wheels & Brakes

Front Tire/Tyre130/70-B18
Rear Tire/Tyre180/70-B16
Front BrakesDouble disc. 4-piston. ABS.
Front Brake Diameter
Rear BrakesSingle disc. 2-piston. ABS.
Rear Brake Diameter
WheelsBlack, machine highlighted, Mantis cast aluminium

Comments

It appears you're interested in specifications for the Harley-Davidson Sport Glide. This Custom / cruiser model is powered by a Milwaukee-Eight® 107 V2, four-stroke engine with 1746.0 ccm (106.54 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 86.0 HP (62.8 kW) @ 5020 RPM horsepower and 146.5 Nm (14.9 kgf-m or 108.0 ft.lbs) @ 2750 RPM torque. According to our records engine heat of the Harley-Davidson Sport Glide is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 130/70-B18 and the rear is 180/70-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4-piston. ABS. front brakes and Single disc. 2-piston. ABS. rear brakes. The Harley-Davidson Sport Glide was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
