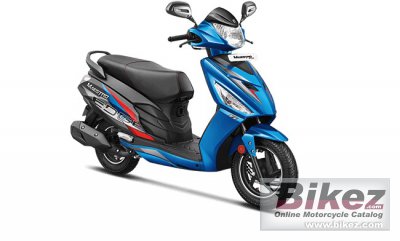

2021 Hero Maestro Edge 110 BS6 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Hero Maestro Edge 110 BS6.

Basic Specs

Hero Maestro Edge 110 BS6
Year2021
MakeHero
ModelHero Maestro Edge 110 BS6
Cost

Engine

Displacement110.9 ccm (6.77 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke53.0 x 49.5 mm (2.1 x 1.9 inches)
Valves/Cylinder
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final Drive
ClutchAutomatic Clutch
Driveline

Performance

Horespower8.1 HP (5.9 kW) @ 7250 RPM
Torque8.7 Nm (0.9 kgf-m or 6.4 ft.lbs) @ 5750 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity5.00 litres (1.32 US gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic, Hydraulic Shock Absorbers
Front Travel
Rear SuspensionUnit Swing with Spring Loaded Hydraulic Damper
Rear Travel
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1188 mm (46.8 inches)
Total Length1843 mm (72.6 inches)
Total Width715 mm (28.1 inches)
Ground Clearance155 mm (6.1 inches)
Wheelbase1261 mm (49.6 inches)
Dry Weight
Wet Weight112.0 kg (246.9 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-12
Rear Tire/Tyre90/100-10
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Hero Maestro Edge 110 BS6. This Scooter model is powered by a Single cylinder, four-stroke engine with 110.9 ccm (6.77 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 8.1 HP (5.9 kW) @ 7250 RPM horsepower and 8.7 Nm (0.9 kgf-m or 6.4 ft.lbs) @ 5750 RPM torque. According to our records engine heat of the Hero Maestro Edge 110 BS6 is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 90/90-12 and the rear is 90/100-10 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Hero Maestro Edge 110 BS6 was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
