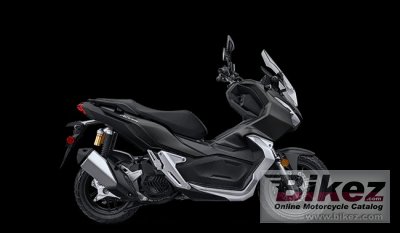

2021 Honda ADV150 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Honda ADV150.

Basic Specs

Honda ADV150
Year2021
MakeHonda
ModelHonda ADV150
TypeScooter
CostUS$ 4299. MSRP depends on country, taxes, accessories, etc.
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement149.0 ccm (9.09 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.6:1
Bore/Stroke57.3 x 57.9 mm (2.3 x 2.3 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI; 26mm throttle body
IgnitionFull transistorized ignition
Exhaust
Lubrication
CoolingLiquid
Spark Plugs

Drivetrain

GearboxAutomatic
Final Drive
Clutch
Driveline
Clutch Plates

Performance

Horespower
Torque
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.95 litres (2.10 US gallons)
Emissions
Fuel Bottles & Cans

Chassis

Frame Type
Rake26.0 deg
Trail86 mm (3.4 inches)
Front Suspension31mm Showa® telescopic fork
Front Travel130 mm (5.1 inches)
Rear SuspensionShowa® twin shocks
Rear Travel119 mm (4.7 inches)
Seat
Seat Height795 mm (31.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1323 mm (52.1 inches)
Dry Weight133.4 kg (294.0 pounds)
Wet Weight
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre110/80-14
Rear Tire/Tyre130/70-13
Front BrakesSingle disc. ABS.
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Honda ADV150. This Scooter model is powered by a Single cylinder, four-stroke engine with 149.0 ccm (9.09 cubic inches) of actual displacement before 10.6:1 compression. Fueling is metered via Injection. PGM-FI; 26mm throttle body allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda ADV150 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 110/80-14 and the rear is 130/70-13 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. front brakes and Expanding brake (drum brake) rear brakes. The Honda ADV150 was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model id: ADV150A.
