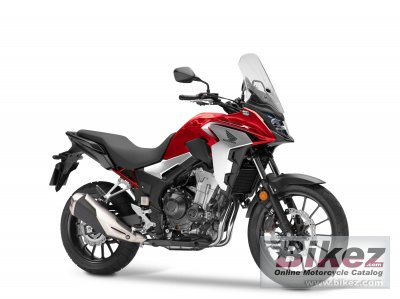

2021 Honda CB500X Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Honda CB500X.

Basic Specs

Honda CB500X
Year2021
MakeHonda
ModelHonda CB500X
TypeSport
CostUS$ 6999. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement471.0 ccm (28.74 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.7:1
Bore/Stroke67.0 x 66.8 mm (2.6 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with 34mm throttle bodies
IgnitionComputer-controlled digital transistorized with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet multiplate
Driveline520 O-ring-sealed chain; 15T/41T

Performance

Horespower46.4 HP (33.9 kW) @ 8500 RPM
Torque41.3 Nm (4.2 kgf-m or 30.5 ft.lbs) @ 7000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption2.93 litres/100 km (34.1 km/l or 80.28 mpg)
Fuel Capacity17.70 litres (4.68 US gallons)
Emissions68.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeDiamond
Rake27.5 deg
Trail108 mm (4.3 inches)
Front Suspension41mm fork
Front Travel150 mm (5.9 inches)
Rear SuspensionPro-Link single shock with nine-position spring preload adjustability
Rear Travel135 mm (5.3 inches)
Seat
Seat Height833 mm (32.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1358 mm (53.5 inches)
Total Length2098 mm (82.6 inches)
Total Width826 mm (32.5 inches)
Ground Clearance170 mm (6.7 inches)
Wheelbase1443 mm (56.8 inches)
Dry Weight
Wet Weight196.9 kg (434.0 pounds)

Wheels & Brakes

Front Tire/Tyre110/80-19
Rear Tire/Tyre160/60-17
Front BrakesDouble disc. ABS. Wave disc. Two-piston calipers.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. ABS. Wave disc.
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CB500X. This Sport model is powered by a Twin, four-stroke engine with 471.0 ccm (28.74 cubic inches) of actual displacement before 10.7:1 compression. Fueling is metered via Injection. PGM-FI with 34mm throttle bodies allowing this machine to produce its 46.4 HP (33.9 kW) @ 8500 RPM horsepower and 41.3 Nm (4.2 kgf-m or 30.5 ft.lbs) @ 7000 RPM torque. According to our records engine heat of the Honda CB500X is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 110/80-19 and the rear is 160/60-17 . The entire package is supported by the frame, Diamond. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Wave disc. Two-piston calipers. front brakes and Single disc. ABS. Wave disc. rear brakes. The Honda CB500X was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CB500XA. Windscreen.
