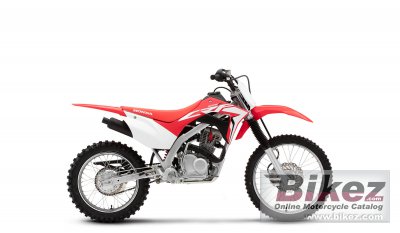

2021 Honda CRF125F Big Wheel Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Honda CRF125F Big Wheel.

Basic Specs

Honda CRF125F Big Wheel
Year2021
MakeHonda
ModelHonda CRF125F Big Wheel
CostUS$ 3599. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement124.9 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke52.4 x 57.9 mm (2.1 x 2.3 inches)
Valves/Cylinder2
FuelingInjection. 22mm throttle bore
IgnitionFull Transistorized
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final Drive
Clutch
Driveline#520 O-ring-sealed chain; 13T/48T

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity3.79 litres (1.00 US gallons)
Emissions

Chassis

Frame TypeDiamond, steel
Rake27.3 deg
Trail94 mm (3.7 inches)
Front Suspension31mm telescopic fork
Front Travel150 mm (5.9 inches)
Rear SuspensionPro-Link® single-shock
Rear Travel168 mm (6.6 inches)
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance262 mm (10.3 inches)
Wheelbase1255 mm (49.4 inches)
Dry Weight
Wet Weight90.3 kg (199.0 pounds)

Wheels & Brakes

Front Tire/Tyre70/100-19
Rear Tire/Tyre90/100-16
Front BrakesSingle disc. Hydraulic
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter149 mm (5.9 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CRF125F Big Wheel. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 124.9 ccm (7.62 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Injection. 22mm throttle bore allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CRF125F Big Wheel is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 70/100-19 and the rear is 90/100-16 . The entire package is supported by the frame, Diamond, steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic front brakes and Expanding brake (drum brake) rear brakes. The Honda CRF125F Big Wheel was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CRF125FB
