2021 Honda GL1800 Gold Wing Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Honda GL1800 Gold Wing.

Basic Specs

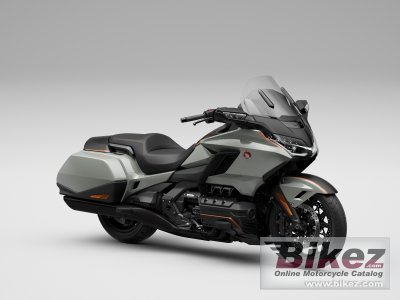

Honda GL1800 Gold Wing
Year2021
MakeHonda
ModelHonda GL1800 Gold Wing
Cost

Engine

Displacement1833.0 ccm (111.85 cubic inches)
Type
DetailsSix cylinder boxer, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke73.0 x 73.0 mm (2.9 x 2.9 inches)
Valves/Cylinder4
FuelingInjection. Programmed Fuel Injection
IgnitionComputer-controlled digital with three-dimensional mapping
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchHydraulic, wet, multiplate with coil springs, assist slipper cam. Or 7-speed Dual Clutch Transmission (DCT).
Driveline

Performance

Horespower124.7 HP (91.0 kW) @ 5500 RPM
Torque170.0 Nm (17.3 kgf-m or 125.4 ft.lbs) @ 4500 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption5.50 litres/100 km (18.2 km/l or 42.77 mpg)
Fuel Capacity21.10 litres (5.57 US gallons)
Emissions127.6 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeAluminium die-cast, twin tube
Rake30.5 deg
Trail109 mm (4.3 inches)
Front SuspensionDouble Wishbone
Front Travel
Rear SuspensionPro arm
Rear Travel
SeatUrethane. Waterproof cover.
Seat Height745 mm (29.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1340 mm (52.8 inches)
Total Length2475 mm (97.4 inches)
Total Width925 mm (36.4 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1695 mm (66.7 inches)
Dry Weight
Wet Weight366.0 kg (806.9 pounds)

Wheels & Brakes

Front Tire/Tyre130/70-R18
Rear Tire/Tyre200/55-R16
Front BrakesDouble disc. Floating discs. 6-piston calipers. ABS.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Three-piston calipers. ABS.
Rear Brake Diameter316 mm (12.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda GL1800 Gold Wing. This Touring model is powered by a Six cylinder boxer, four-stroke engine with 1833.0 ccm (111.85 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. Programmed Fuel Injection allowing this machine to produce its 124.7 HP (91.0 kW) @ 5500 RPM horsepower and 170.0 Nm (17.3 kgf-m or 125.4 ft.lbs) @ 4500 RPM torque. According to our records engine heat of the Honda GL1800 Gold Wing is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 130/70-R18 and the rear is 200/55-R16 . The entire package is supported by the frame, Aluminium die-cast, twin tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating discs. 6-piston calipers. ABS. front brakes and Single disc. Three-piston calipers. ABS. rear brakes. The Honda GL1800 Gold Wing was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: GL1800. Electric windscreen adjustable for angle and height. Surround Sound. Cruise Control. Electric reverse. Navigation system. Bluetooth. 2 USB.
