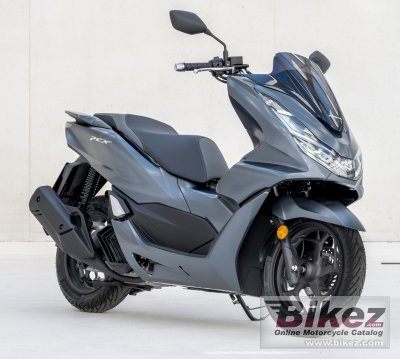

2021 Honda PCX125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Honda PCX125 .

Basic Specs

Honda PCX125
Year2021
MakeHonda
ModelHonda PCX125
Cost

Engine

Displacement125.0 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke53.5 x 55.5 mm (2.1 x 2.2 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI with automatic enrichment
IgnitionFull transistorized ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final Drive
ClutchAutomatic, centrifugal, dry type
DrivelineHonda V-Matic belt-converter automatic transmission

Performance

Horespower12.3 HP (9.0 kW) @ 8750 RPM
Torque11.8 Nm (1.2 kgf-m or 8.7 ft.lbs) @ 6500 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption2.10 litres/100 km (47.6 km/l or 112.01 mpg)
Fuel Capacity8.00 litres (2.11 US gallons)
Emissions48.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular Steel Underbone
Rake27.0 deg
Trail86 mm (3.4 inches)
Front Suspension31mm telescopic for
Front Travel89 mm (3.5 inches)
Rear SuspensionTwin suspension aluminium swingarm
Rear Travel95 mm (3.7 inches)
Seat
Seat Height764 mm (30.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1105 mm (43.5 inches)
Total Length1935 mm (76.2 inches)
Total Width740 mm (29.1 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1315 mm (51.8 inches)
Dry Weight
Wet Weight130.0 kg (286.6 pounds)

Wheels & Brakes

Front Tire/Tyre110/70-14
Rear Tire/Tyre130/70-13
Front BrakesSingle disc. Hydraulic.
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda PCX125 . This Scooter model is powered by a Single cylinder, four-stroke engine with 125.0 ccm (7.63 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. PGM-FI with automatic enrichment allowing this machine to produce its 12.3 HP (9.0 kW) @ 8750 RPM horsepower and 11.8 Nm (1.2 kgf-m or 8.7 ft.lbs) @ 6500 RPM torque. According to our records engine heat of the Honda PCX125 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 110/70-14 and the rear is 130/70-13 . The entire package is supported by the frame, Tubular Steel Underbone. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic. front brakes and Expanding brake (drum brake) rear brakes. The Honda PCX125 was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
