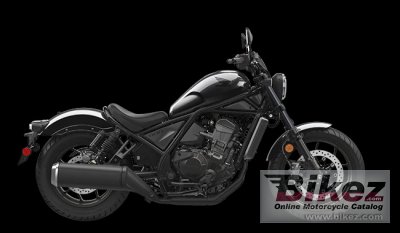

These are the known mechanical and performance specifications for your 2021 Honda Rebel 1100 DCT.
Basic Specs
Year2021
MakeHonda
ModelHonda Rebel 1100 DCT
TypeCustom / cruiser
CostUS$ 9999. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement1084.0 ccm (66.15 cubic inches)
Type22.5° parallel-twin
DetailsTwin, four-stroke
Max RPM
Compression10.1:1
Bore/Stroke92.0 x 81.5 mm (3.6 x 3.2 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI electronic fuel injection. Throttle By Wire.
IgnitionFull transistorized ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
GearboxAutomatic
Final Drive
Clutch6-speed Automatic Dual Clutch Transmission
Driveline#525 O-ring-sealed chain; 16T/42T
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity13.63 litres (3.60 US gallons)
Emissions
Chassis
Frame Type
Rake28.0 deg
Trail110 mm (4.3 inches)
Front Suspension43mm fork
Front Travel122 mm (4.8 inches)
Rear SuspensionDual Showa shocks with 12.5mm shafts, adjustable preload, and piggyback pressurized reservoirs
Rear Travel94 mm (3.7 inches)
Seat
Seat Height699 mm (27.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1094 mm (43.1 inches)
Total Length2188 mm (86.1 inches)
Total Width820 mm (32.3 inches)
Ground Clearance136 mm (5.4 inches)
Wheelbase1519 mm (59.8 inches)
Dry Weight
Wet Weight230.9 kg (509.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/70-18
Rear Tire/Tyre180/65-16
Front BrakesSingle disc. ABS. Floating discs. Four-piston calipers. Radially mounted.
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. ABS. Single-piston caliper.
Rear Brake Diameter256 mm (10.1 inches)
Wheels
Comments
Cruise control. Selectable riding modes. USB charging port. Model id: CMX1100D.
