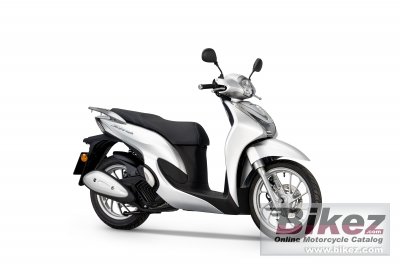

2021 Honda SH Mode 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Honda SH Mode 125 .

Basic Specs

Honda SH Mode 125
Year2021
MakeHonda
ModelHonda SH Mode 125
Cost

Engine

Displacement125.0 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke53.5 x 55.5 mm (2.1 x 2.2 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI electronic fuel injection
IgnitionFully transistorised electronic
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final Drive
ClutchAutomatic Centrifugal Clutch, Dry
DrivelineV-Belt

Performance

Horespower11.3 HP (8.2 kW) @ 8750 RPM
Torque12.0 Nm (1.2 kgf-m or 8.9 ft.lbs) @ 5000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption2.10 litres/100 km (47.6 km/l or 112.01 mpg)
Fuel Capacity5.50 litres (1.45 US gallons)
Emissions48.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeUnder bone
Rake27.0 deg
Trail68 mm (2.7 inches)
Front SuspensionTelescopic forks with hydraulic damping 31mm
Front Travel89 mm (3.5 inches)
Rear SuspensionUnit swingarm
Rear Travel75 mm (3.0 inches)
Seat
Seat Height765 mm (30.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1100 mm (43.3 inches)
Total Length1950 mm (76.8 inches)
Total Width670 mm (26.4 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1305 mm (51.4 inches)
Dry Weight
Wet Weight116.0 kg (255.7 pounds)

Wheels & Brakes

Front Tire/Tyre80/90-16
Rear Tire/Tyre100/90-14
Front BrakesSingle disc. Hydraulic.
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
WheelsCast aluminium

Comments

It appears you're interested in specifications for the Honda SH Mode 125 . This Scooter model is powered by a Single cylinder, four-stroke engine with 125.0 ccm (7.63 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection. PGM-FI electronic fuel injection allowing this machine to produce its 11.3 HP (8.2 kW) @ 8750 RPM horsepower and 12.0 Nm (1.2 kgf-m or 8.9 ft.lbs) @ 5000 RPM torque. According to our records engine heat of the Honda SH Mode 125 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 80/90-16 and the rear is 100/90-14 . The entire package is supported by the frame, Under bone. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic. front brakes and Expanding brake (drum brake) rear brakes. The Honda SH Mode 125 was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
