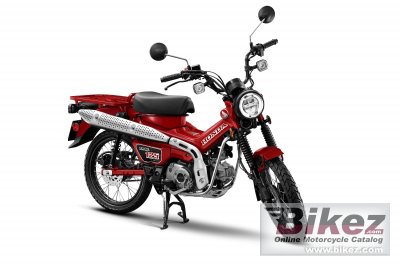

2021 Honda Trail 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Honda Trail 125.

Basic Specs

Honda Trail 125
Year2021
MakeHonda
ModelHonda Trail 125
CostUS$ 3899. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement124.9 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.3:1
Bore/Stroke52.4 x 57.9 mm (2.1 x 2.3 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI with automatic enrichment
IgnitionFully transistorized
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final Drive
ClutchAutomatic centrifugal
Driveline#420 Chain; 14T/39T

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity5.30 litres (1.40 US gallons)
Emissions

Chassis

Frame Type
Rake27.0 deg
Trail79 mm (3.1 inches)
Front Suspension27mm telescopic fork
Front Travel99 mm (3.9 inches)
Rear SuspensionTwin shock
Rear Travel86 mm (3.4 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2150 mm (84.6 inches)
Total Width833 mm (32.8 inches)
Ground Clearance190 mm (7.5 inches)
Wheelbase1450 mm (57.1 inches)
Dry Weight117.5 kg (259.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre80/90-17
Rear Tire/Tyre80/90-17
Front BrakesSingle disc. ABS. Hydraulic.
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc. Hydraulic.
Rear Brake Diameter190 mm (7.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda Trail 125. This Allround model is powered by a Single cylinder, four-stroke engine with 124.9 ccm (7.62 cubic inches) of actual displacement before 9.3:1 compression. Fueling is metered via Injection. PGM-FI with automatic enrichment allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda Trail 125 is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 80/90-17 and the rear is 80/90-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. Hydraulic. front brakes and Single disc. Hydraulic. rear brakes. The Honda Trail 125 was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model id: C125A.
