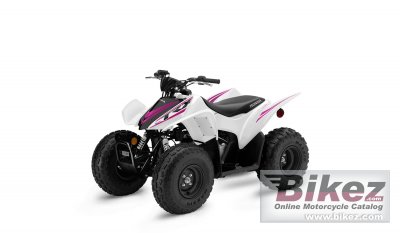

These are the known mechanical and performance specifications for your 2021 Honda TRX90X.
Basic Specs
Year2021
MakeHonda
ModelHonda TRX90X
TypeATV
CostUS$ 3199. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement86.0 ccm (5.25 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke47.0 x 49.5 mm (1.9 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. 15mm piston-valve
IgnitionCDI
Exhaust
Lubrication
CoolingAir
Drivetrain
Gearbox4-speed
Final Drive
ClutchAutomatic
DrivelineO-ring-sealed chain. 2WD.
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity6.43 litres (1.70 US gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent suspension
Front Travel66 mm (2.6 inches)
Rear SuspensionSwingarm with single shock
Rear Travel66 mm (2.6 inches)
Seat
Seat Height660 mm (26.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height927 mm (36.5 inches)
Total Length1488 mm (58.6 inches)
Total Width894 mm (35.2 inches)
Ground Clearance99 mm (3.9 inches)
Wheelbase983 mm (38.7 inches)
Dry Weight
Wet Weight118.8 kg (262.0 pounds)
Wheels & Brakes
Front Tire/Tyre20/7-8
Rear Tire/Tyre19/8-8
Front BrakesExpanding brake (drum brake). Dual sealed drum
Front Brake Diameter110 mm (4.3 inches)
Rear BrakesExpanding brake (drum brake). Sealed drum
Rear Brake Diameter140 mm (5.5 inches)
Wheels
Comments
Model ID: TRX90X. Recommended for riders 10 years of age and older.
