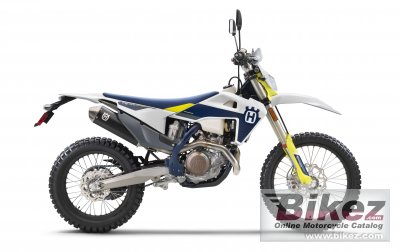

2021 Husqvarna FE 501s Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Husqvarna FE 501s.

Basic Specs

Husqvarna FE 501s
Year2021
MakeHusqvarna
ModelHusqvarna FE 501s
CostUS$ 11699. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement510.4 ccm (31.14 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.2:1
Bore/Stroke95.0 x 72.0 mm (3.7 x 2.8 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionKeihin EMS
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, DDS multi-disc clutch, Magura hydraulics
DrivelineX-ring 5/8 x 1/4 in chain

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption3.62 litres/100 km (27.6 km/l or 64.98 mpg)
Fuel Capacity8.50 litres (2.25 US gallons)
Emissions84.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeCentral double-cradle-type 25CrMo4 steel
Rake26.5 deg
Trail
Front SuspensionWP XPLOR-USD, Ø 48 mm
Front Travel300 mm (11.8 inches)
Rear SuspensionWP XACT Monoshock with linkage
Rear Travel300 mm (11.8 inches)
Seat
Seat Height950 mm (37.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance360 mm (14.2 inches)
Wheelbase1482 mm (58.3 inches)
Dry Weight111.8 kg (246.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre140/80-18
Front BrakesSingle disc. Magura. Wave disk.
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Magura. Wave disk.
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Husqvarna FE 501s. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 510.4 ccm (31.14 cubic inches) of actual displacement before 12.2:1 compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Husqvarna FE 501s is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 140/80-18 . The entire package is supported by the frame, Central double-cradle-type 25CrMo4 steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Magura. Wave disk. front brakes and Single disc. Magura. Wave disk. rear brakes. The Husqvarna FE 501s was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
