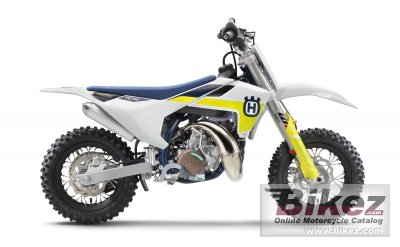

2021 Husqvarna TC 50 Mini Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Husqvarna TC 50 Mini.

Basic Specs

Husqvarna TC 50 Mini
Year2021
MakeHusqvarna
ModelHusqvarna TC 50 Mini
Cost

Engine

Displacement49.0 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke39.5 x 40.0 mm (1.6 x 1.6 inches)
Valves/Cylinder
Fueling
IgnitionSeletra 2p D36
Exhaust
LubricationMixture oil lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final Drive
ClutchCentrifugal clutch (adjustable)
DrivelineSingle-speed automatic. Primary drive: 61.

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity2.30 litres (0.61 US gallons)
Emissions

Chassis

Frame TypeChrome-molybdenum steel central-tube
Rake22.6 deg
Trail
Front SuspensionXACT 35 WP Upside-Down fork, Ø 35 mm
Front Travel100 mm (3.9 inches)
Rear SuspensionXACT WP PDS mono shock
Rear Travel147 mm (5.8 inches)
Seat
Seat Height558 mm (22.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance168 mm (6.6 inches)
Wheelbase1032 mm (40.6 inches)
Dry Weight40.0 kg (88.2 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter160 mm (6.3 inches)
Rear BrakesSingle disc
Rear Brake Diameter160 mm (6.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Husqvarna TC 50 Mini. This Minibike, cross model is powered by a Single cylinder, two-stroke engine with 49.0 ccm (2.99 cubic inches) of actual displacement before compression. Fueling is metered via allowing this machine to produce its horsepower and torque. According to our records engine heat of the Husqvarna TC 50 Mini is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Chrome-molybdenum steel central-tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Husqvarna TC 50 Mini was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Power reduction kit available.
