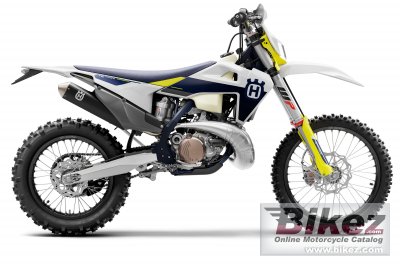

These are the known mechanical and performance specifications for your 2021 Husqvarna TE 250i.
Basic Specs
Engine
Displacement249.0 ccm (15.19 cubic inches)
TypeReed valve.
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke66.4 x 72.0 mm (2.6 x 2.8 inches)
Valves/Cylinder
FuelingInjection. Synerject
IgnitionAET digital EMS
Exhaust
LubricationMixture oil lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchWet, DDS multi-disc clutch, Magura hydraulics
Driveline
Fuel Economy & Polution
Fuel Consumption2.55 litres/100 km (39.2 km/l or 92.24 mpg)
Fuel Capacity8.50 litres (2.25 US gallons)
Emissions59.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeCentral double-cradle-type 25CrMo4 steel
Rake26.5 deg
Trail107 mm (4.2 inches)
Front SuspensionWP XPLOR-USD, Ø 48 mm
Front Travel300 mm (11.8 inches)
Rear SuspensionWP XACT Monoshock with linkage
Rear Travel300 mm (11.8 inches)
Seat
Seat Height950 mm (37.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2260 mm (89.0 inches)
Total Width
Ground Clearance360 mm (14.2 inches)
Wheelbase1482 mm (58.3 inches)
Dry Weight106.2 kg (234.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre140/90-18
Front BrakesSingle disc. Magura twin-piston floating calliper, brake disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Magura single-piston floating calliper, brake disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
