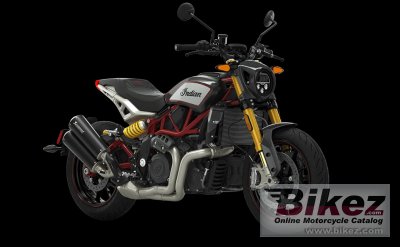

2021 Indian FTR 1200 R Carbon Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Indian FTR 1200 R Carbon.

Basic Specs

Indian FTR 1200 R Carbon
Year2021
MakeIndian
ModelIndian FTR 1200 R Carbon
CostUS$ 16999. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement1203.0 ccm (73.41 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke102.0 x 73.6 mm (4.0 x 2.9 inches)
Valves/Cylinder4
FuelingInjection. Closed Loop Sequential Port Fuel Injection
Ignition
ExhaustBlacked-out Akropovic® 2-1-2
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchAssist and slip, Multi-Plate
Driveline

Performance

Horespower123.0 HP (89.8 kW)
Torque117.9 Nm (12.0 kgf-m or 87.0 ft.lbs) @ 6000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.90 litres (3.41 US gallons)
Emissions

Chassis

Frame Type
Rake25.3 deg
Trail99 mm (3.9 inches)
Front SuspensionOhlins Fully Adjustable Inverted Telescopic Cartidge Fork
Front Travel120 mm (4.7 inches)
Rear SuspensionOhlins Fully Adjustable Piggyback IFP
Rear Travel120 mm (4.7 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1295 mm (51.0 inches)
Total Length2223 mm (87.5 inches)
Total Width831 mm (32.7 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase1524 mm (60.0 inches)
Dry Weight217.3 kg (479.0 pounds)
Wet Weight232.7 kg (513.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-R19
Rear Tire/Tyre150/70-R18
Front BrakesDouble disc. ABS. Two-piston calipers. Brembo.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. 2-Piston Calipers. Brembo.
Rear Brake Diameter265 mm (10.4 inches)
WheelsCast Black with Indy Red Pinstripe. Metzeler® Sportec® tires.

Comments

It appears you're interested in specifications for the Indian FTR 1200 R Carbon. This Custom / cruiser model is powered by a V2, four-stroke engine with 1203.0 ccm (73.41 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Injection. Closed Loop Sequential Port Fuel Injection allowing this machine to produce its 123.0 HP (89.8 kW) horsepower and 117.9 Nm (12.0 kgf-m or 87.0 ft.lbs) @ 6000 RPM torque. According to our records engine heat of the Indian FTR 1200 R Carbon is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-R19 and the rear is 150/70-R18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Two-piston calipers. Brembo. front brakes and Single disc. ABS. 2-Piston Calipers. Brembo. rear brakes. The Indian FTR 1200 R Carbon was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Sport, Standard, and Rain ride modes. Stabilitiy Control. Traction Control. Wheelie Control with Rear Lift Mitigation. USB Fast-Charge Port. Cruise Control.
