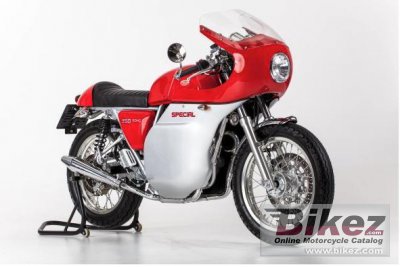

2021 Jawa 350 OHC Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Jawa 350 OHC.

Basic Specs

Jawa 350 OHC
Year2021
MakeJawa
ModelJawa 350 OHC
Cost

Engine

Displacement350.0 ccm (21.36 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression8.8:1
Bore/Stroke85.0 x 70.0 mm (3.3 x 2.8 inches)
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final Drive
Clutch
Driveline

Performance

Horespower27.4 HP (20.0 kW) @ 6500 RPM
Torque30.6 Nm (3.1 kgf-m or 22.6 ft.lbs) @ 5000 RPM
Top Speed130.0 km/h (80.8 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.50 litres (3.30 US gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic
Front Travel150 mm (5.9 inches)
Rear Suspension
Rear Travel80 mm (3.1 inches)
Seat
Seat Height760 mm (29.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight160.0 kg (352.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/90-19
Rear Tire/Tyre130/70-18
Front BrakesSingle disc
Front Brake Diameter280 mm (11.0 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter160 mm (6.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Jawa 350 OHC. This Custom / cruiser model is powered by a Twin, four-stroke engine with 350.0 ccm (21.36 cubic inches) of actual displacement before 8.8:1 compression. Fueling is metered via allowing this machine to produce its 27.4 HP (20.0 kW) @ 6500 RPM horsepower and 30.6 Nm (3.1 kgf-m or 22.6 ft.lbs) @ 5000 RPM torque. According to our records engine heat of the Jawa 350 OHC is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 100/90-19 and the rear is 130/70-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Jawa 350 OHC was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
