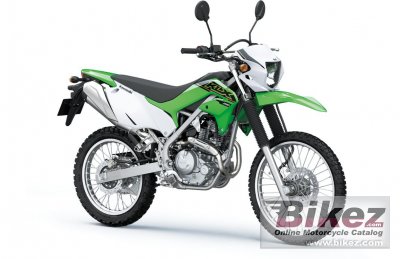

2021 Kawasaki KLX230 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Kawasaki KLX230.

Basic Specs

Kawasaki KLX230
Year2021
MakeKawasaki
ModelKawasaki KLX230
CostUS$ 4599. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement233.0 ccm (14.22 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke67.0 x 66.0 mm (2.6 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. DFI® with 32mm Keihin throttle body
IgnitionTCBI Electronic Advance
Exhaust
LubricationForced lubrication, wet sump
CoolingAir

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet multi-disc, manual
DrivelineSealed chain

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.57 litres (2.00 US gallons)
Emissions

Chassis

Frame TypeHigh-tensile steel, box-section perimeter
Rake27.5 deg
Trail117 mm (4.6 inches)
Front Suspension37mm telescopic fork
Front Travel221 mm (8.7 inches)
Rear SuspensionUni-Trak® linkage system and single shock with adjustable spring preload
Rear Travel224 mm (8.8 inches)
Seat
Seat Height884 mm (34.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1166 mm (45.9 inches)
Total Length2106 mm (82.9 inches)
Total Width836 mm (32.9 inches)
Ground Clearance264 mm (10.4 inches)
Wheelbase1379 mm (54.3 inches)
Dry Weight
Wet Weight133.0 kg (293.3 pounds)

Wheels & Brakes

Front Tire/Tyre80/100-21
Rear Tire/Tyre100/100-18
Front BrakesSingle disc. Dual-piston. Petal disc.
Front Brake Diameter265 mm (10.4 inches)
Rear BrakesSingle disc. Single-piston. Petal disc.
Rear Brake Diameter220 mm (8.7 inches)
WheelsWire spoked

Comments

It appears you're interested in specifications for the Kawasaki KLX230. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 233.0 ccm (14.22 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection. DFI® with 32mm Keihin throttle body allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki KLX230 is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 80/100-21 and the rear is 100/100-18 . The entire package is supported by the frame, High-tensile steel, box-section perimeter. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Dual-piston. Petal disc. front brakes and Single disc. Single-piston. Petal disc. rear brakes. The Kawasaki KLX230 was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
